Most of us hold a type of adjustable wrenches round even after we know higher. It sits within the toolbox as a result of it covers a variety of sizes with out forcing a full set of fastened wrenches onto the job. Then the jaws shift simply sufficient throughout use, the pinnacle of the bolt loses its sharp edges, and a five-minute job stretches into an extended restoration session. Somebody Ought to Make That determined sufficient was sufficient. He walks by the precise drawback that turns strange fasteners into rounded messes and the tactic he used to resolve it on a small CNC mill.
The issue stems from the interplay between the transferring jaw and its adjustment screw. If you apply some pressure to the wrench to get issues began, the flexibleness within the jaw permits it to flex, and the contact transfers from the flat sides of the hex to the corners. Attempt to get a great grasp on the bolt with the wrench, and it’ll be a coin flip whether or not it’s cosy or unfastened once more. Ultimately, many individuals merely push their thumb towards the adjustment wheel to maintain issues from slipping, which usually works till it doesn’t.
Bambu Lab A1 3D Printer, Ready-to-Use FDM 3D Printer for Beginners and Kids
- Excessive-Velocity Precision: Expertise unparalleled pace and precision with the Bambu Lab A1 3D Printer. With a powerful acceleration of 10,000 mm/s…
- Multi-Colour Printing with AMS lite: Unlock your creativity with vibrant and multi-colored 3D prints. The Bambu Lab A1 3D printers make multi-color…
- Full-Auto Calibration: Say goodbye to guide calibration hassles. The A1 3D printer takes care of all of the calibration processes robotically…
He examined his first concept, preloading the transferring jaw with a spring to maintain the threads engaged always. He created a number of plastic prototypes to try it out, but it surely solely underlined the issue. Because the jaws closed, the spring compressed tougher, giving the feeling of struggling towards a brick wall when making an attempt to make actual changes. A softer spring was solely a short lived treatment, not a everlasting resolution.

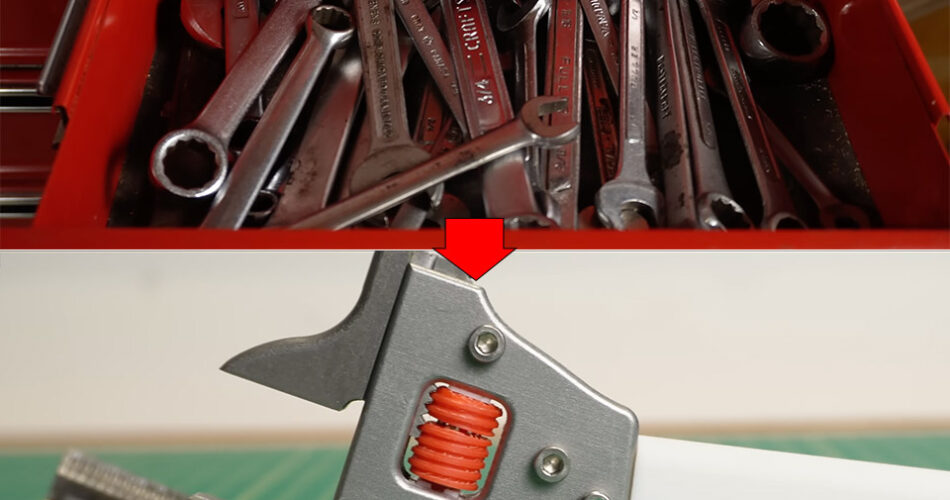

The higher method comes from machines that might later be used to chop steel components, particularly anti-backlash nuts present in CNC mills and 3D printers. These nuts use a spring to maintain the driving threads underneath fixed pressure, stopping free play. He tried the identical method along with his wrench, splitting the adjustment screw in half and attaching a spring between them. One half of the screw threads are compelled into the transferring jaw, whereas the opposite half is pushed into the bushing by the jaw. Consequently, the preload stays fixed whatever the jaw opening dimension.
A second plastic prototype of his design proved that it functioned. Then he constructed a metal model with a DMC2 micro mill. After loads of fixture work, instrument path modifications, and probing changes, he efficiently eliminated the housing, screw halves, and transferring jaw from the machine. His early runs have been troubled by uneven top readings utilizing conductive pucks, so he moved to an optical instrument setter and constructed bespoke Mach3 procedures to deal with offsets. He needed to be cautious with materials elimination when the threads have been too tight, and a lathe try on the thumb screw failed miserably, so he settled on a 3D printed plastic model.
When the entire parts have been lastly put collectively, they match completely with none submitting. As soon as adjusted, the spring holds the jaws firmly connected to the bolt, eradicating any play. You now not must press your thumb on the adjustment wheel to maintain every little thing in line, and the fastener’s flats take the load reasonably than the corners. The plastic screw nonetheless has some flex, but it surely holds up effectively underneath day by day use.
