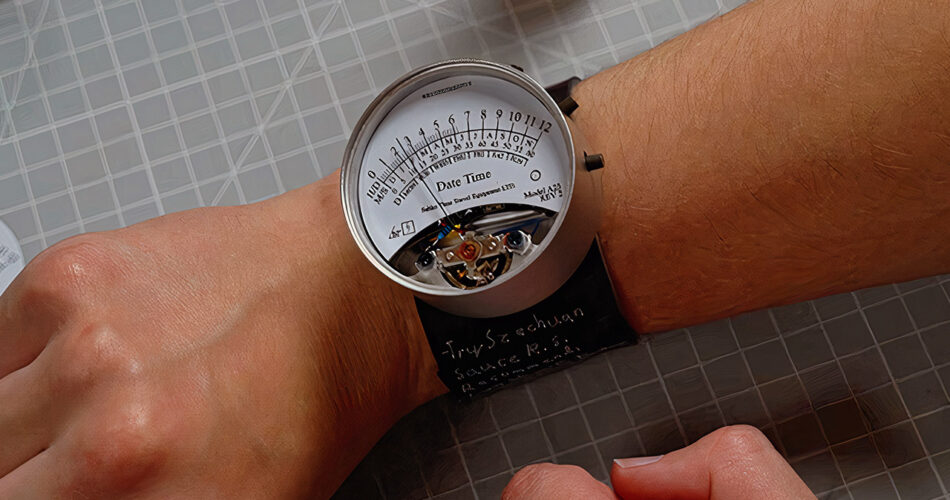

Sporting this watch supplies an preliminary feeling of shock, as a single needle glides throughout a printed scale to disclose the precise time or date and not using a flashing display or ticking palms. Sahko remodeled an thought drawn years in the past into a elegant merchandise that matches simply across the wrist and appears each outdated and new on the similar time. He desired a digital watch that depended solely on analog mechanics for show.
Early drawings depicted many scales crammed onto a single dial, every managed by a button on the housing. He then constructed quite a few prototypes to check totally different housings and circuits. The primary model included a compass, which was a whole failure as a result of the meter’s personal magnetic area repeatedly threw off the readings. The performance was then completely dropped in favor of simplifying the design and making certain that all the pieces really labored accurately.
Google Fitbit Air – Screenless Activity Tracker with Fitness, Heart Rate, and Sleep Tracking…
- Google Fitbit Air is the unbelievably comfy, exceptionally sensible solution to remodel your well being[1]; and Google Well being brings collectively easy…
- Unlock extra with Google Well being Premium: With a premium membership, get customized teaching that’s constructed with Gemini and adapts to your life…
- Snug match – One Dimension Tracker (130-210 mm): The light-weight, micro-adjustable match sits comfortably and quietly, so you possibly can put on Google Fitbit Air…
The meter motion is solely a salvaged Nineteen Seventies amplifier part that lies in the midst of your complete setup. A present flows by the coil and interacts with a magnet, swinging the needle left and proper in a clean movement. The Raspberry Pi Pico microprocessor turns time into voltage, which is then handed to the digital-to-analog converter and, final, to the meter coil, making certain that the needle at all times lands precisely on the mark. They use the identical needle and arc in all modes, however the data proven differs relying on which button you press.
The Pico, converter, battery, and charging circuit are all housed on a custom-made board that takes up little area. Sahko had the thought of printing the dial scales straight onto the board, making it extremely sturdy and visually lovely. On one aspect of the case, there are three buttons: one to cycle by the hours, one for the day of the month, and one to indicate the month or day of the week. Holding the right mixture causes the needle to comb over the size, marking off every second in actual time.
The case is machined from aluminum and has a clean matte texture from bead blasting, making it fingerprint-resistant and comfy in opposition to the pores and skin. You possibly can even put a pocket watch-style cowl on the dial to guard the needle and maintain it trying good. The wire spacers maintain the needle completely stage, so it by no means scrapes the underlying floor. The strap is product of leather-based and options an elastic bit within the heart for simple adjusting. The leather-based ends merely connect to the case by way of magnets, making them exceedingly straightforward to placed on and take off with out using conventional pins or buckles.
Energy comes from a bit of rechargeable battery that may simply final your complete day. The casing features a USB-C socket for charging, and the Pico’s programming does a superb job of protecting the time correct and figuring out which voltage vary to map every studying to, making certain that the needle at all times reacts swiftly. If you wish to see the schematics of the entire thing, Sahko has even uploaded a set of information to GitHub that include schematics, board designs, and the precise firmware.
