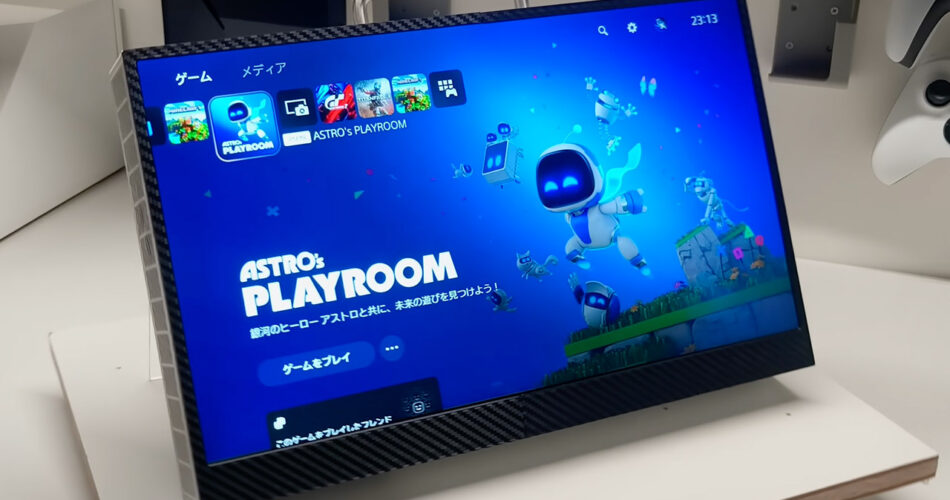

Japanese modder TERA got down to remedy an issue that had bothered him for years. He wished a PlayStation 5 that might go anyplace with out sacrificing the complete expertise gamers anticipate from the console at house. His newest creation delivers precisely that in a type that slides simply into most laptop computer luggage.
Months handed since TERA completed a a lot bigger transportable model of this machine based mostly on the identical {hardware}. That machine, weighing almost 5 kilograms, had a battery lifetime of lower than an hour, nevertheless it needed to have an outsized display, which made it a ache within the neck to hold round and retailer, however they realized rather a lot from that effort, and all of these classes had been utilized to this new mission.
PlayStation®5 console – 1TB
- PlayStation 5 Console – 1TB, consists of wi-fi controller, 1TBSSD, Disc Drive, 2 Horizontal Stand Toes, HDMI cable, AC energy twine, USB cable, printed…
- 1TB of Storage, hold your favourite video games prepared and ready so that you can leap in and play
- Extremely-Excessive Pace SSD, maximize you play periods with close to instantaneous load occasions for put in PS5 video games
To get started, they disassembled an previous PlayStation 5 that they bought for under 22,000 yen. TERA took out the motherboard and flung the rest of the elements right into a nook. This particular board was roughly two-thirds the scale of the one used within the prior technology, which was important because it gave them much more room to play with by way of packing.
Now, warmth administration was a prime precedence as a result of the principle processor has a poor tendency of drawing almost 200 watts when it’s below load. Early testing with the common CPU cooling revealed that it couldn’t final various minutes earlier than temperature warnings appeared. TERA opted to make use of a vapor-chamber heatsink, which is often utilized in server tools and may face up to excessive temperatures. He printed a mount for it after which added some warmth pipes and aluminum bars to help transfer warmth away from the encompassing chips, in addition to some liquid metallic compound to the processor after making use of a protecting coating to stop the encompassing electronics from shorts.
Then there was fan design, which was as important. TERA merely took an off-the-shelf fan, minimize its blades right down to measurement, and printed a brand new housing and model new blades to match the heatsink precisely. Then he added a temperature sensor, which despatched information to a small circuit that adjusted the fan velocity on the fly. Additionally they added a show to the completed unit, which reveals the temperature and fan velocity at a look.
The subsequent step was energy supply, in order that they inserted a modified server energy provide unit inside the casing to keep away from having to take care of a big, cumbersome exterior brick. Additionally they put in some bespoke timing boards to make sure that the display and fan didn’t draw any energy except you hit the facility button. Lastly, they added a tiny copper plate that related to floor to eradicate the video noise that appeared through the preliminary assessments.
This was constructed with a 15.6-inch Sharp LCD panel, which is a smaller show than the one used within the final design, however its shiny floor retains the colours vibrant and helps them shave off among the weight and thickness. They printed off a number of plastic components for the skin shell, together with air flow slits on the perimeters and a metallic deal with for hauling. They then used double-sided tape to safe the display and exact spacers to maintain the again panel in place.
As for battery life, it’s nonetheless a piece in progress. In different testing with a compact RC automotive battery pack hooked up instantly, they had been capable of get the unit to run a PlayStation 4 recreation for roughly half-hour. In fact, the power-hungry PS5 titles don’t final as lengthy, however the structure permits for a removable battery pack in future editions.
