- Ploopy reworked the basic ThinkPad pointing stick right into a standalone desktop controller
- Ploopy Bean makes use of magnetic sensing {hardware}, capturing 20,000 samples per second
- Open-source firmware permits full customization of each button and performance
The pc mouse has splintered into numerous variations over the a long time, but the pressure-sensitive pointing stick has remained stubbornly obscure outdoors a loyal circle of customers.
Canadian firm Ploopy has now launched a standalone gadget constructed totally round this fingertip-controlled nub.

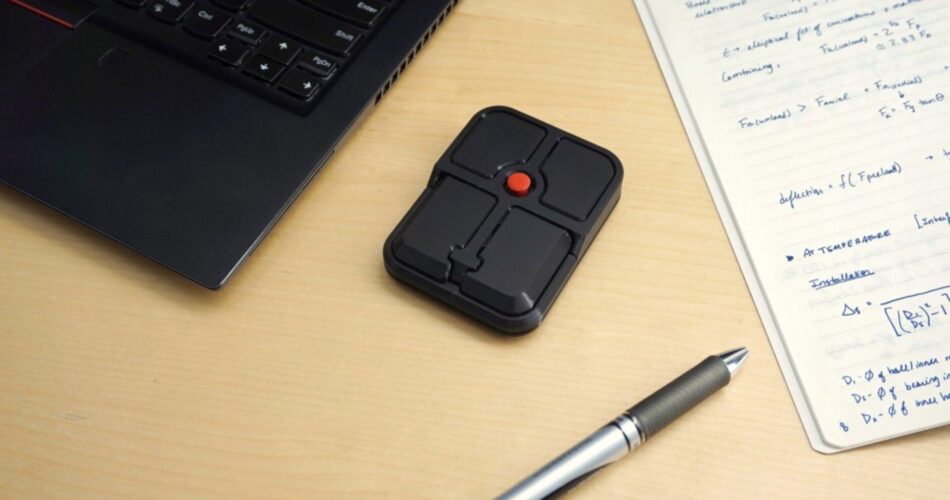

The Ploopy Bean homes a pink pointing stick — the identical kind famously related to IBM and later Lenovo ThinkPad keyboards — inside a compact chassis alongside 4 programmable buttons.
How the Pointing Mechanism Works
For anybody who spent years nudging that small pink submit to navigate spreadsheets or code, the design triggers instantaneous recognition.
A pointing stick depends on stress quite than journey, translating tiny fingertip nudges into cursor motion throughout a display – and the Bean takes this precept and upgrades the sensing {hardware} beneath the nub.
Ploopy fitted a Texas Devices TMAG5273 high-precision magnetic sensor that captures 20,000 samples per second and may detect displacement as tremendous as three microns.
The stick itself permits motion as much as eleven millimeters in every axis, which exceeds the vary typical of laptop computer implementations.
This prolonged journey distance goals to scale back the finger fatigue generally reported by customers who spend lengthy hours with typical pointing sticks.
The 4 buttons across the stick use Omron D2LS-21 switches, they usually ship with default assignments for left click on, proper click on, center click on, and click-to-drag or scroll.
As a result of the Bean runs on a Raspberry Pi RP2040 microcontroller with QMK open-source firmware, these button capabilities are by no means locked in place.
Customers can reconfigure each button by means of the VIA internet software, a free browser-based instrument that requires no coding information.
Anybody inclined towards deeper modification can set up totally customized firmware, and Ploopy publishes each {hardware} and software program design recordsdata on GitHub.
That openness means a damaged element doesn’t essentially doom the gadget to obsolescence, since alternative elements will be fabricated with a 3D printer.
Availability and Early Demand
Early Entry ordering for the Bean opened at a value of $70 CAD, however your entire preliminary batch offered out nearly immediately.
Anybody who missed that first wave should now take care of an 8-week delay beneath Tier A or a 20 -week wait beneath Tier B.
The query lingering over this gadget is whether or not a standalone pointing stick is sensible when positioned to the facet of a keyboard quite than embedded inside it.
Pointing sticks gained their unique following exactly as a result of they eradicated the necessity to transfer fingers away from the house row
A separate field sitting beside the keyboard might clear up a distinct downside than the one which made the TrackPoint indispensable within the first place.
By way of Liliputing
