Jamie at Brick Jams grew to become curious about pneumatic cylinders and ended up growing a machine able to squashing on a regular basis objects with ease below over 300 kilos of stress. He put collectively 42 LEGO pneumatic cylinders and constructed a novel air compressor system.The ensuing machine is rock stable on a strengthened body and produces a gradual, managed stress each time you open the valve.
Jamie began low-key, testing one cylinder at a time and discovering that with a steady circulate of air, one cylinder might push out roughly 3.4 kg. When he inserted a second one, the drive nearly instantaneously doubled. The machine moved with out hesitation even if 4 cylinders weighed 12 kg and eight weighed 24. Because the numbers elevated, he might see how every additional cylinder merely added to the drive with out throwing the whole system out of whack.
Sale
LEGO Technic Lunar Outpost Moon Rover Space Vehicle Building Toy – All-Terrain Explorer for Kids, Boys…
- MISSION TO THE MOON – House explorers 10 years outdated and up can construct the superior Moon rover system impressed by actual Lunar Outpost automobiles enabling…
- REALISTIC ENGINEERING COMPONENTS – Children can uncover actual area engineering rules with rocker suspension, 4-wheel steering, deployable photo voltaic…
- MODEL SPACE ROVER – The all-terrain area automobile features a mining rover with a dynamic scoop and pattern container for Moon rocks, plus a MAPP…
Then issues obtained heavy, and Jamie needed to begin strengthening the whole factor. He used metallic elevate arms from metallic Technic components to crisscross the inspiration, partitions, and roof. He additionally included some lengthy metallic axles to maintain all the pieces in place and a few bushings to stop the entire thing from slipping below load. He ran a number of preliminary exams with the press plate and decrease platform, every hauling twice an individual’s physique weight, and was thrilled to find that they flexed zero.
He additionally wanted to undertake some cautious engineering with the air provide. Jamie linked 24 little compressors to at least one massive unit and geared them all the way down to get a constant circulate. He purchased two motors and a few battery containers to hurry up the method when the primary system started to run low on air. A easy valve allowed him to open and shut all the cylinders with a single flick. He even included an exterior air tank possibility so he might conduct extraordinarily actual exams. The configuration generated sufficient stress to maintain the cylinders working easily with no lag or stall.
The following stage was to assemble the machine, as Jamie organized the 42 cylinders on the roof in a good grid. To make sure that the stress was evenly distributed, he routed the tubing from the compressor to every cylinder utilizing splitters. The strengthened cage encloses the crushing space and directs all drive to the plate. A couple of closing inspections to make sure all the pieces was rock stable and that the press plate was completely aligned with the platform beneath.

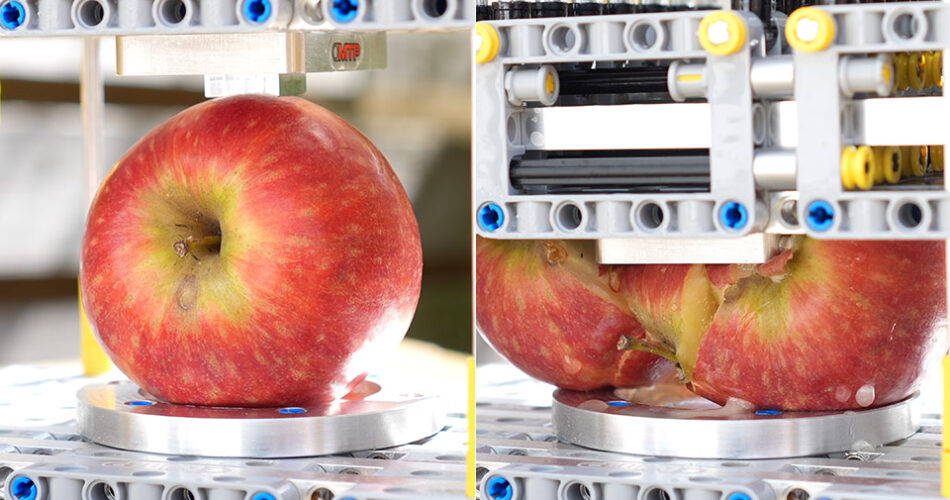

Lastly, crush testing started, and all the pieces was able to go. A small orange LEGO piece was squeezed below the plate in just some seconds. A metallic axle from a Scorching Wheels automotive broke cleanly in two. An empty soda can was flattened right into a disc with sharp edges pushed out to the perimeters. Apples and strawberries burst open, and light-weight bulbs popped with a flash. Even a full canister gave it a superb shot, leaving the platform somewhat untidy however largely full. Each object obtained the identical remedy and yielded with out shock from the machine itself.
