Rooms come alive as hundreds of LEDs illuminate in excellent time over a big 50×50 panel. Chris Maher took on this job by changing common gentle strips into that massive show with out breaking the financial institution or requiring a number of controllers. His completed presentation performs nicely on a single 12-volt energy provide and a few fairly tiny gear, providing professional-looking animations, textual content, and patterns.
Chris bought 18 5-meter rolls of 12-volt SK6812 strips, every with 30 LEDs per metre, so acquiring the mandatory elements was easy. He then sliced every roll into three 50 LED parts, for a complete of 54 segments, plus a couple of spares for security. To offer assist, he constructed a easy wood body out of one-by-two boards and a few board-and-batten panels. The remainder of the equipment consisted of some quick sections of 18-gauge silicone wire, lever-style connections, rubber grommets, and a Gledopto 4D-EXMU controller loaded with WLED firmware, in addition to an ordinary 12-volt energy provide.
Sale
Govee Curtain Lights Pro, Upgraded 960 LEDs Smart Color Changing LED Curtain Lights with AIGC, Dynamic…
- Smoother, Silkier Animations: That includes 960 ultra-dense RGBIC LEDs and a next-gen 20x-speed chip, the sensible curtain lights assist high-capacity…
- Greater Inventive Freedom: Unleash creativity with the led sensible curtain lights, providing a 30-layer canvas for uploads, 1,000+ belongings. Craft gorgeous…
- Yr-Spherical Lighting: The curtain fairy lights carry any event to life with 250+ preset modes, tailor-made for holidays, events, and day by day atmosphere…

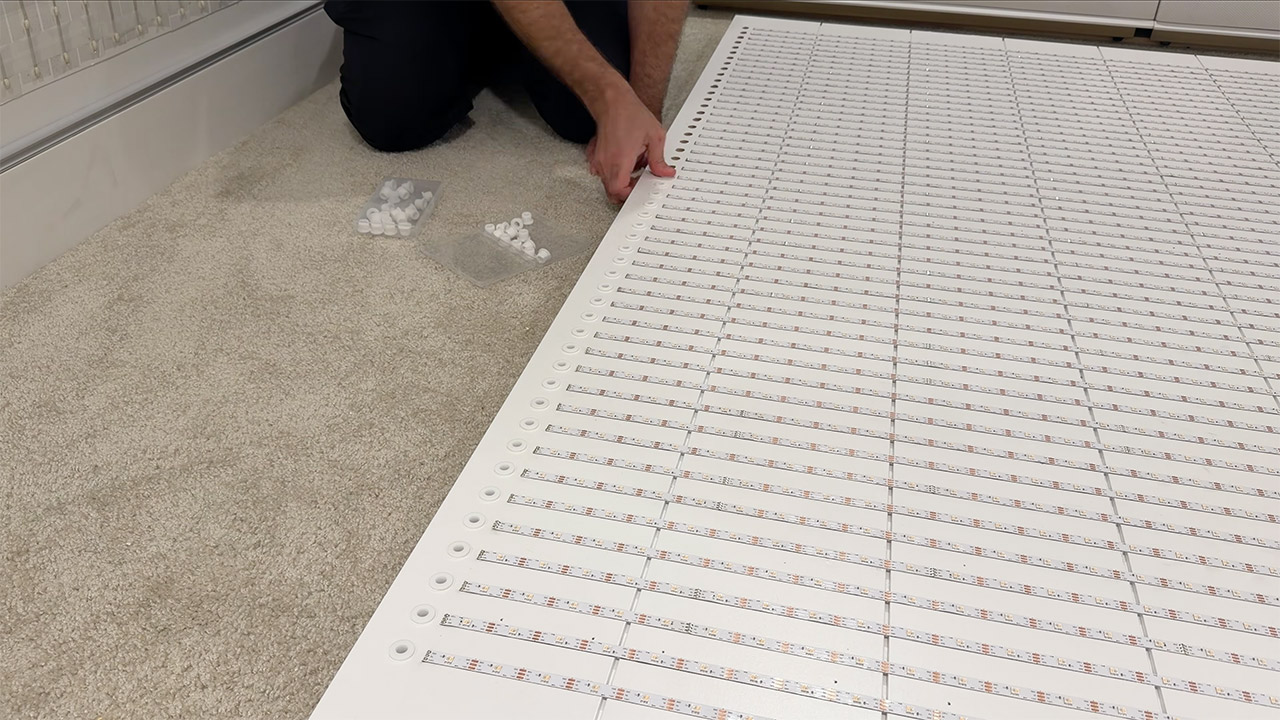

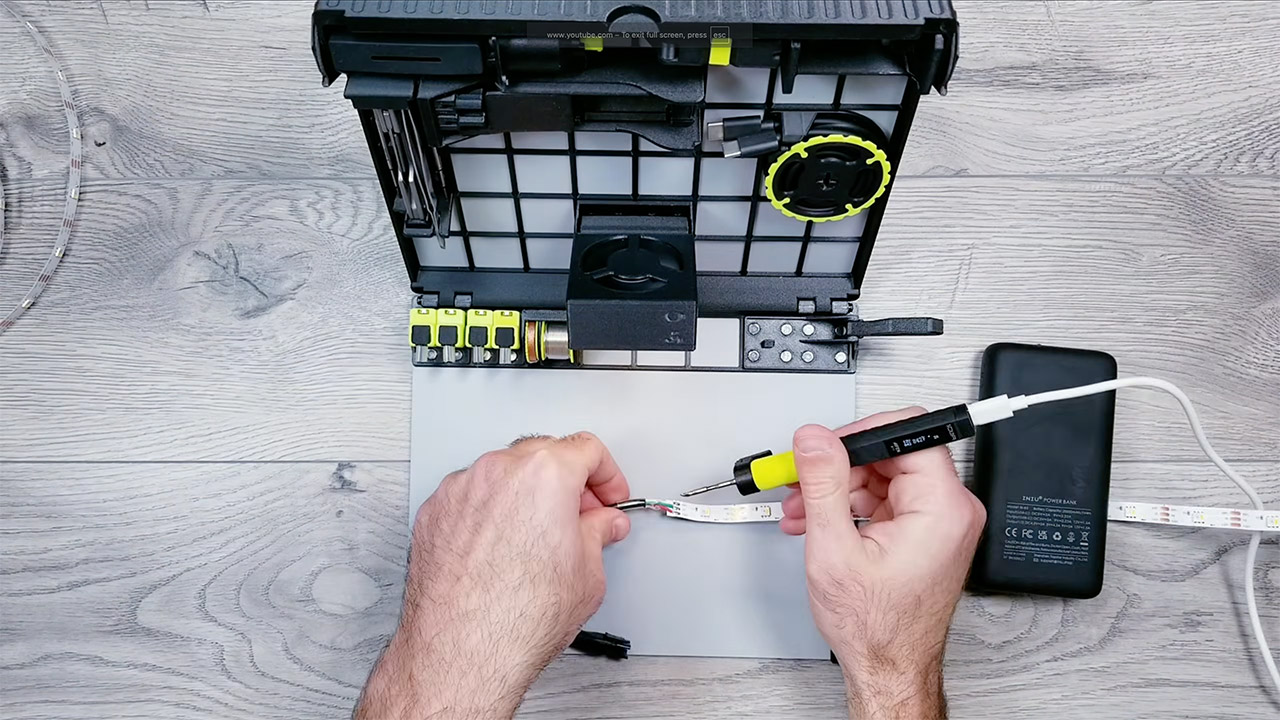

First, he needed to get the strips able to go, so he rigorously eliminated the connections from the ends, soldered the uncovered pads, stripped, tinned, and ready all the wires for connection. This preliminary work made the ultimate meeting quite a bit easier. Subsequent got here the body, which he constructed by stacking and screwing the boards collectively to kind a stable rectangle the identical measurement because the completed grid. He added some board-and-batten panels to the entrance to offer a agency floor to screw the strips to. He painstakingly wrote out the locations of every strip, making certain that they have been completely spaced from edge to edge. He then positioned the strips down in a zig-zag sample, alternating course row by row, to kind a single lengthy steady information channel.

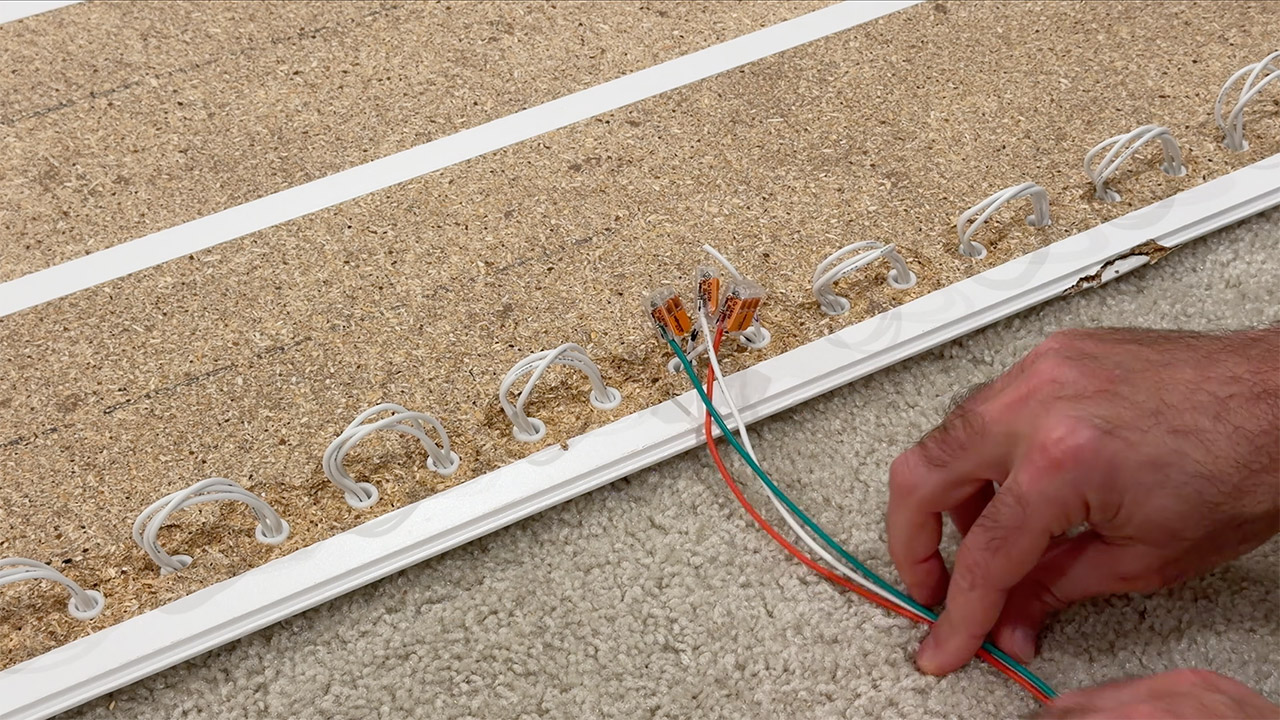

Holes have been drilled above and beneath every strip, and rubber grommets have been inserted to permit the wires to move by means of to the again aspect whereas holding the entrance of the show neat and freed from connections. At a number of spots, lever-style connectors have been utilized to attach the ability and information traces, and separating the grid into 4 distinct information runs ensured that the whole lot remained in sync.

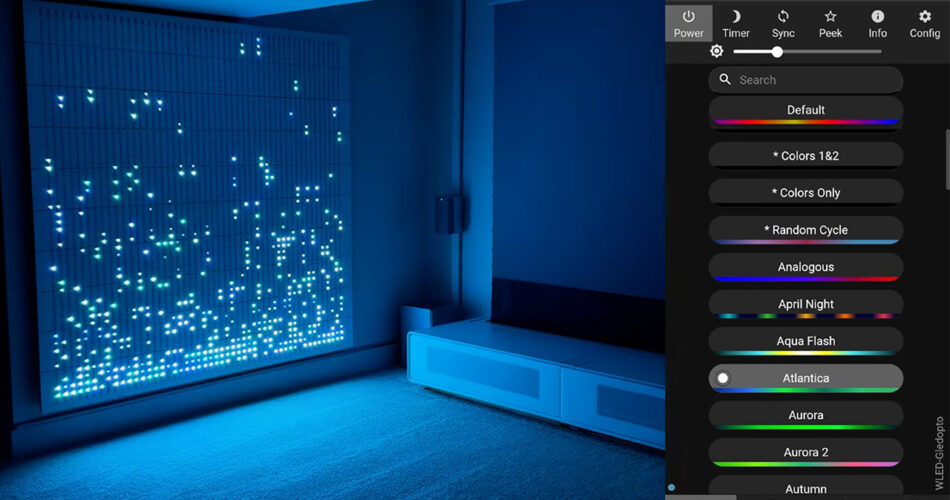

The wiring was reasonably easy, as you simply join the voltage, floor, and information wires in that order. He utilized coloured wire markers to maintain monitor of which was which throughout meeting. The controller and energy provide have been mounted to the again with easy clips and wood blocks. A French cleat system on the again makes it easy to mount the entire panel to a wall. As soon as he had the whole lot configured contained in the WLED interface, it was solely a matter of choosing the SK6812 sort, validating the 12-volt system, and specifying the 50×50 sample with a vertical zig-zag orientation. Some brightness limitations have been set to guard the ability provide, and 4 information outputs have been allotted to every block of LEDs. As soon as the whole lot was saved, the show would reply promptly to requests for colours, results, or scrolling messages.
