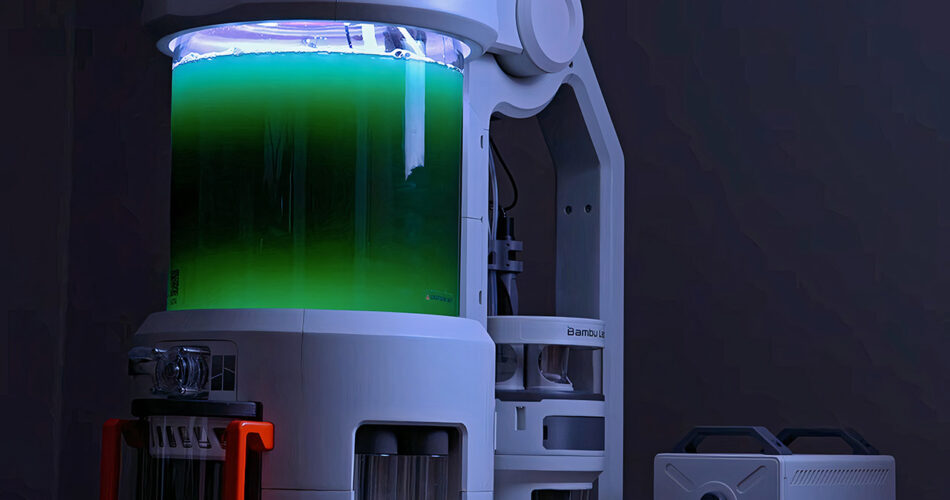

One builder showcases custom-built photobioreactor from begin to end, having printed nearly all of its parts on a traditional 3D printer sitting on a piece floor. The ultimate machine merely sits there silently day after day, changing water and light-weight into useable biomass with out the necessity for anybody to concentrate to it.
Spirulina fills the primary chamber for the reason that design ensures a constant temperature, mild, and air provide across the clock. A small preliminary quantity of tradition, roughly a gallon, expands over the subsequent few weeks when contemporary water and vitamins are launched. The sunshine enters from the perimeters, and there’s an air bubbler to maintain all the things blended up and stuffed with oxygen. Sensors are on the job, maintaining a tally of issues to make sure that the algae has sufficient to develop and reproduce swiftly, offering a couple of grams of dried biomass per week after the tradition is totally established.
Bambu Lab A1 3D Printer, Support Multi-Color 3D Printing, High Speed & Precision, Full-Auto Calibration…
- Excessive-Pace Precision: Expertise unparalleled velocity and precision with the Bambu Lab A1 3D Printer. With a formidable acceleration of 10,000 mm/s…
- Multi-Coloration Printing with AMS lite: Unlock your creativity with vibrant and multi-colored 3D prints. The Bambu Lab A1 3D printers make multi-color…
- Full-Auto Calibration: Say goodbye to handbook calibration hassles. The A1 3D printer takes care of all of the calibration processes routinely…
Issues start with the Bambu Lab A1 printer laying down thermoplastic layers for the body, tank helps, and {custom} fittings. Giant items come collectively shortly attributable to automated calibration and the printer’s speedy speeds. The printed components match collectively properly and snugly, requiring little greater than a contact of tidying earlier than assembling the complete machine. Off-the-shelf pumps, lighting, and tubing are then inserted into the plastic skeleton, altering it right into a sealed surroundings that retains the liquid inside with out leaking in every single place.
When all the things is kind of upright, the electronics take over. A Raspberry Pi 5 serves as the primary controller, with two Arduinos appearing as job specialists. One Arduino is liable for operating the lights, heating, and bubbler regularly. The second solely handles the automated sampling process, which checks the acidity ranges with out permitting the sensors to run dry or deviate off beam. A sequence of USB wires transmit primary textual content instructions backwards and forwards to maintain the complete association in sync.
Measuring pH is especially troublesome for the reason that probe should stay moist and clear between readings. So there’s a small rotating half that removes the lids off the storage vials, rinses the sensor in deionized water, after which strikes it to seize a pattern from the tradition earlier than returning it to the vial. A spinning tablet inside a silicone tube hooked up to magnets to supply light stirring and decrease residue buildup. As a bonus, the identical movement shuts up the vial, stopping evaporation. This all runs by itself tiny schedule and logs every consequence in case anyone desires to look it up later.
Knowledge seems on a touchscreen that appears like a management panel. At a look, graphs point out how mild depth decreases on the backside of the tank as algae density will increase and blocks extra mild. The temperature readings are all the time displayed instantly in entrance of you. When harvest time approaches, when the sunshine curve lastly flattens out, signaling peak focus, the system drains a bit of the tradition, filtering out the great things whereas permitting the rest to proceed rising. As soon as harvested, the fabric is unfold out on trays, dries in a couple of hours, and is pulverized right into a positive inexperienced powder that may be saved or used instantly as fish meals.
The biomass yield is presently round eight grams per week, which is ample to assist a small aquaponic setup and scale back the necessity to buy as a lot feed. Dried spirulina may also be saved for as much as two years, offering a shelf-stable protein supply proper from your individual yard. And when your algae feed your fish, your fish waste fertilizes your vegetation, and your plant trimmings return to the algal tradition, the complete system simply retains biking spherical and spherical with none exterior help. As soon as the primary tradition is established, there isn’t any want for added inputs.
