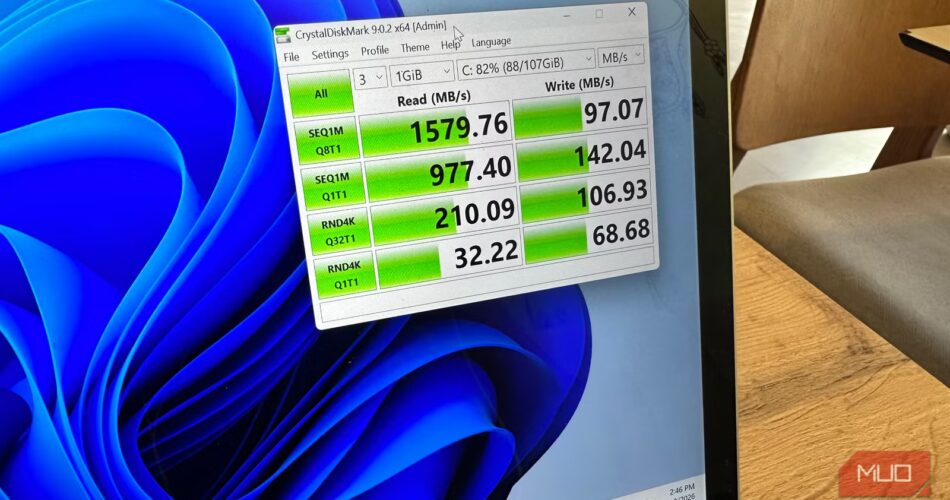

Image this: you spend an obnoxious amount of cash on a quick SSD. You benchmark the SSD, solely to find it is acting at speeds properly under the marketed ones. Earlier than you go it off as faulty, do not forget that the marketed speeds in your SSD assume a best-case state of affairs. And some of the vital elements is the connection interface it is utilizing.
Not all M.2 slots are created equal
Choose the slot nearer to the CPU
It is very easy to conflate type elements, interfaces, and protocols when coping with SSDs. So let’s clear that first. If you happen to purchased an SSD up to now 5 years, it is seemingly an M.2 SSD. Now, M.2 is each a type issue and a slot. M.2 SSDs slot instantly into an M.2 slot within the motherboard and usually use the NVMe (“Envy Me”) protocol. This mixture of the PCIe M.2 slot and the NVMe protocol is what makes them so quick. It is vital to concentrate on this as a result of there are SSDs with the M.2 type issue that match into an M.2 slot however use a SATA-based knowledge switch protocol, which is far slower than NVMe. These SSDs will often have two notches.
The issue is that some motherboards have a number of NVMe M.2 slots, and their speeds can differ. The slot wired on to the CPU typically helps greater PCIe generations (e.g., 5.0 x4) with devoted lanes, whereas chipset slots could also be restricted to PCIe 4.0 x4 and share DMI bandwidth. The opposite M.2 slot is a chipset slot, which suggests the PCIe lanes go to the motherboard’s chipset, then to the CPU, introducing some latency in comparison with a CPU slot. When you’ve got greater than 2 M.2 slots in your motherboard, discuss with the guide to seek out out which of them go on to the CPU, and join your M.2 SSD to a type of for the very best efficiency.
I stopped using USB flash drives for transfers because this is so much faster
Flash drives are handy however NVMe SSDs are in a unique league.
As well as, CPU M.2 slots often assist a more recent PCIe era. For instance, the CPU PCIe slot on most trendy motherboards will probably be PCIe 5.0, whereas the chipset one will probably be PCIe 4.0, and even PCIe 3.0. If you happen to put an M.2 SSD that helps PCIe 5.0 right into a PCIe 4.0 slot, its switch speeds will probably be a lot slower than its PCIe 5.0 capabilities. To place issues into perspective, PCIe 5.0 doubles the bandwidth of PCIe 4.0 (to ~4 GB/s per lane), which itself doubles PCIe 3.0 — the scaling is generational doubling.
- Storage capability
-
2TB
- Model
-
Samsung
- Switch charge
-
Learn: 7,450 MB/s, Write: 6,900 MB/s
- DRAM
-
2GB
Your exterior SSD is just as quick because the port you plug it into
Simply because it is USB-C does not imply it is quick

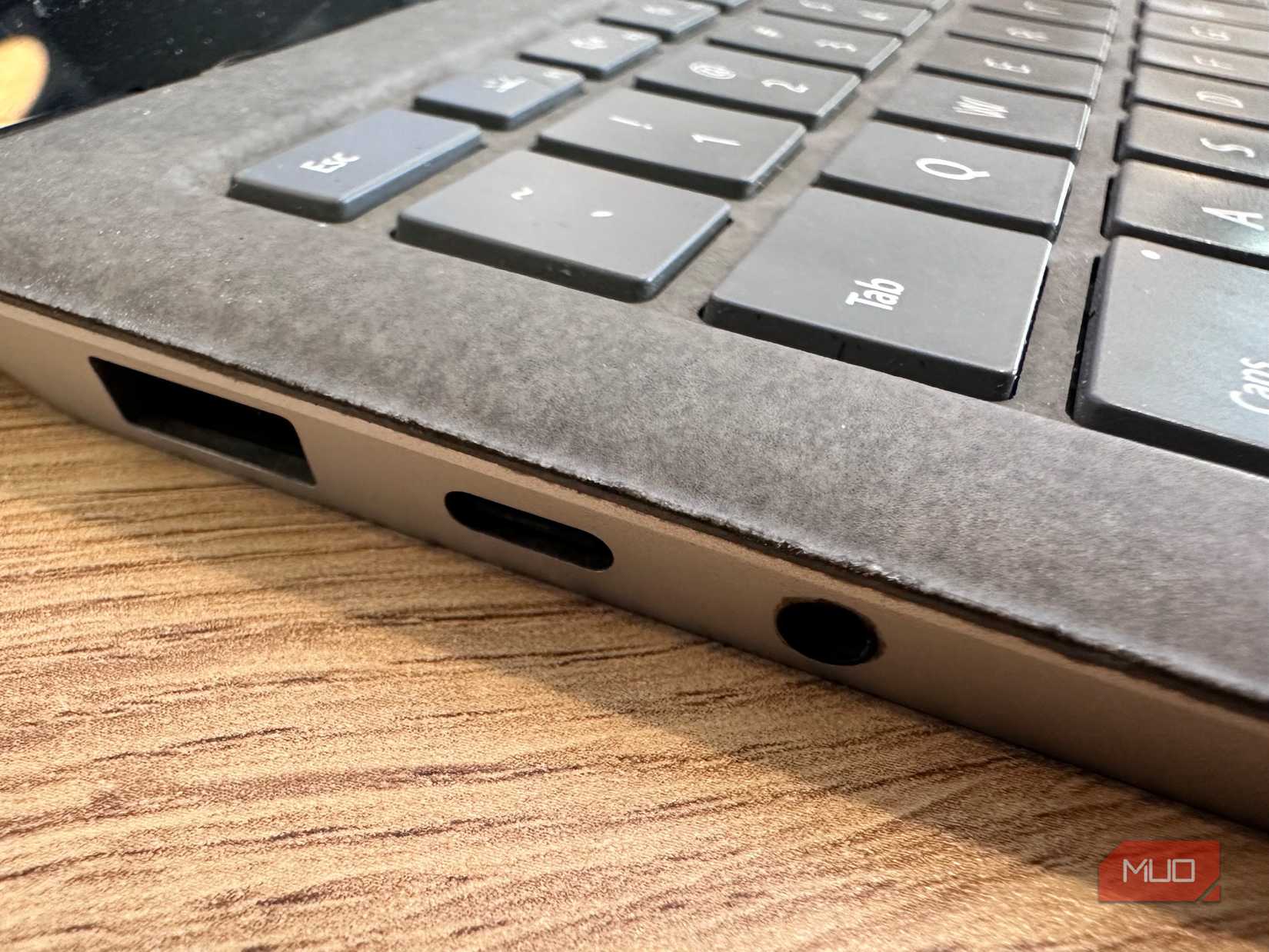

Your exterior SSD connects to your PC utilizing a USB-A or USB-C connector. Most likely the latter, should you purchased your SSD within the final 5 years. USB-C is usually thought-about a velocity customary, but it surely’s not: it is a connector/port sort. There are totally different velocity requirements or protocols that USB-C helps, resembling USB 3.2 Gen 1, Gen 2, and Gen 2×2. Premium laptops and Apple Silicon Macs characteristic Thunderbolt 3/4 or USB4 ports as much as 40Gbps. To get essentially the most out of your exterior SSD, it should be linked to a USB-C port that helps the SSD’s most velocity customary.
So, should you purchase a premium SSD that helps Thunderbolt (3, 4, 5) speeds and your laptop computer solely has a USB 3.2 Gen 1 slot, you will not get wherever close to the marketed switch speeds. To realize these speeds, each issues must be in place: the drive and the port have to assist the marketed speeds. Connecting a USB 3.2 Gen 1 exterior SSD to a Thunderbolt 5 port will not make it carry out any sooner, however connecting a Thunderbolt 3 or 4 exterior SSD to a USB 3.2 Gen 1 port will cap the drive’s efficiency on the port’s restrict.
Many mainstream exterior SSDs are simply NVMe (or SATA) M.2 drives inside an enclosure that converts the PCIe alerts to USB. The truth is, third-party enclosures can be found that allow you to flip your inner M.2 SSDs into exterior drives. It is vital to understand that these drives will not carry out on the speeds of inner M.2 SSDs, and the bottleneck is the connector and port: PCIe is far sooner than USB-C.
When it really issues
Chances are you’ll not even discover the distinction typically
Port bottlenecks are an actual difficulty, however you could not even discover them in on a regular basis utilization. For on a regular basis duties like looking, streaming, loading purposes, and booting Home windows, you will not really feel the distinction between a PCIe 3.0 and PCIe 5.0 drive, or between a USB 3.2 Gen 2 and Thunderbolt exterior SSD. These workloads merely do not push sufficient knowledge to reveal the hole.
The place it issues is in sustained large-file transfers, video modifying instantly on exterior SSDs, or importing/exporting massive photograph libraries: these are the workflows the place the bottlenecks will probably be obvious. In case your work recurrently includes transferring tens of gigabytes at a stretch, getting the connection proper has a tangible payoff. If it does not, the distinction is usually in benchmarks.
