Most individuals would hear the query and transfer on and not using a second thought. Janus Cycle heard it and started working. The purpose was easy however barely absurd: may a candle energy an unique Nintendo Game Boy? Because it seems, sure, and the result’s a completely working handheld that masses video games and stays lit and not using a single battery or energy outlet in sight.
Curiosity acquired the ball rolling after some fundamental math revealed how a lot electrical energy a candle can produce. Now, the flame’s brightness does little for photo voltaic panels, however the warmth output is sort of totally different. A Peltier module emerged because the central element of your complete operation. It’s sandwiched between two heatsinks; one absorbs warmth from the flame, whereas the opposite stays cool within the open air. The warmth touring over the module generates voltage through the Seebeck impact.

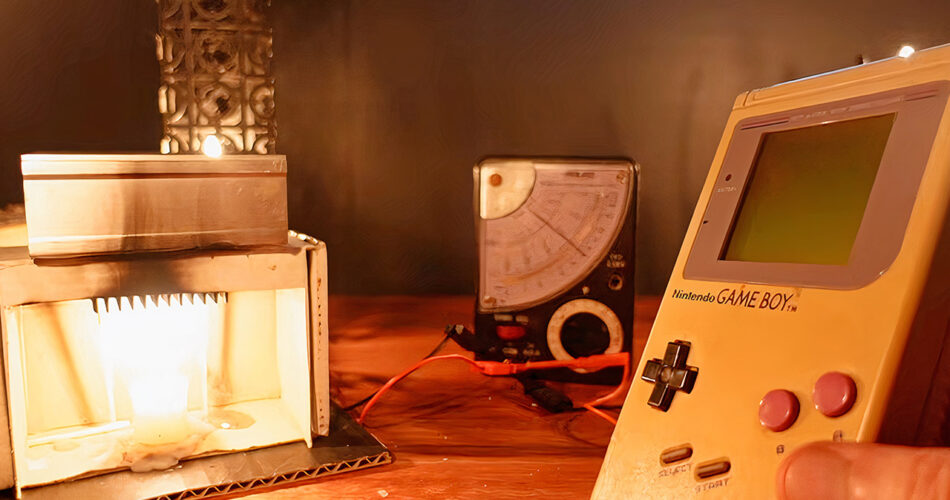

It began with a cardboard field reduce to carry your complete stack regular above a tea mild candle. The wires merely related the module to the Sport Boy’s energy port, eliminating the necessity for batteries. The preliminary check confirmed that energy was flowing, however solely simply barely, with a studying of two volts. Turning on the console immediately lowered the voltage beneath what was even usable. However as they doubled up on the modules and included two candles, the figures skyrocketed, reaching 4 volts or extra. The Sport Boy powered proper up, and Tetris blocks started dropping onto the display screen as traditional. The sound functioned, the controls responded accurately, and it was working simply as anticipated.
The preliminary setup proved the idea labored, but it surely was clunky and the smoke state of affairs left one thing to be desired. In order that they stripped it again to a single module and one taller candle, utilized thermal grease to assist warmth switch extra effectively throughout the new aspect, and positioned the flame near the heatsink with out getting uncomfortably shut. The end result was a gradual 3 to 4 volts, proper the place they wanted it to be.
Getting it to run reliably took slightly persistence. The preliminary surge of electrical energy would knock issues out for a second or two earlier than the flame settled into a gradual output and stored the whole lot ticking alongside easily. Demo footage captures the entire course of, shaky early makes an attempt included, but it surely comes collectively regularly and the advance is evident to see. As soon as the flame finds its rhythm the console retains operating, and at the same time as issues settle down the voltmeter holds regular all through. It’s not a wholly new thought both. Historic gadgets used the identical precept to transform lamp warmth into radio alerts in probably the most distant corners of the world. This venture simply takes that very same pondering and applies it on a a lot smaller scale.
In fact, security first, so don’t put a candle close to something flammable simply but. You possibly can perceive why, since one of many early checks even resulted in a nasty spark till some changes had been made. Regardless of this, the method is easy and based mostly on fundamental physics, so anybody can observe alongside. Janus Cycle actually offered the steps overtly, permitting others to experiment with their very own elementary ideas.
