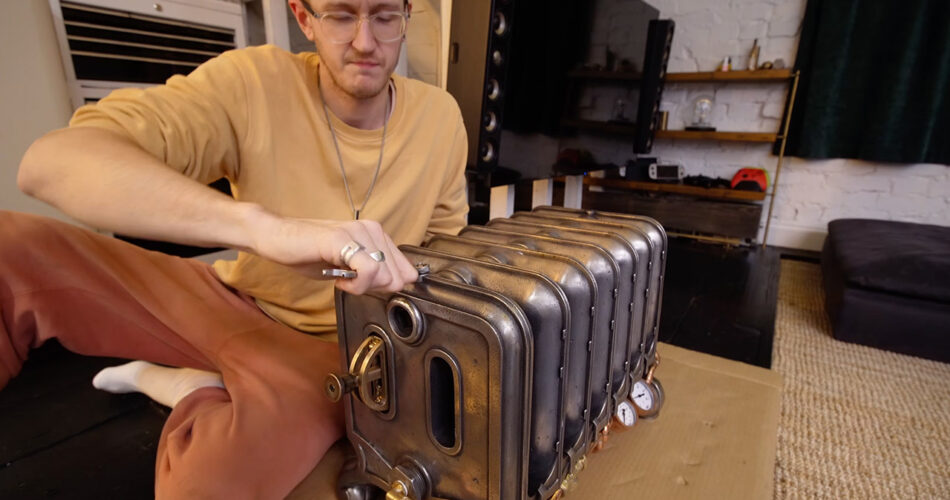

When Billet Labs started on this venture, they confronted an surprising problem: remodeling a Victorian-era vintage right into a purposeful lounge show. When totally loaded with water, the completed creation weighs an enormous 99 kilograms (218 kilos), combining the class of historic heating expertise with some significantly fashionable elements, and its background as a Victorian radiator simply provides to its attraction.
The empty radiator weighs solely 50 kilos, however when coolant and different elements are added, the load rises to effectively over 100 kilograms. What’s actually shocking is how effectively its massive thermal mass works; 18 liters of water and a pile of iron merely absorb warmth spikes, preserving the gadget going even while you depart the PC on for hours.
Now the workforce wanted to determine how you can match all the elements beneath the radiator in a customized base, in order that they 3D scanned the radiator’s backside, created a customized tray in Blender and Fusion, and printed the entire thing. The most effective facet is that you simply’d by no means comprehend it was there; there aren’t any seen brackets or evident attachments from the surface.
The system is powered by a Gigabyte Aorus Professional B850I motherboard and an AMD Ryzen 9 9800X3D processor, which is a tremendous monster. The NVIDIA RTX 5080 graphics card is water-cooled utilizing an Alphacool block. It additionally features a strong 32GB of RAM and a 2TB HDD, whereas a compact 600W Flex ATX Platinum modular energy provide powers all of it. The cooling system makes use of a single loop across the radiator, with copper pipes connecting to brass rotary and compression connections, a DDC pump dealing with circulation, and three skinny 120mm followers preserving issues good and chilly. There may be additionally a 0.1mm mesh filter and a magnetic one to entice any mud or rust particles that will get in the best way.
Cleansing proved to be a problem, because the crew found the onerous method that rust particles might trigger critical issues, clogging up the pump and creating air bubbles that refused to clear. In order that they determined to completely clear all the pieces with citric acid options, water, and detergent, adopted by a rust inhibitor to maintain all the pieces secure. As a pleasant contact, the loop has separate valves and drain ports, permitting you to flush the radiator and pc parts individually with out having to maneuver the whole meeting, and there are even hoses for distant upkeep if you should get beneath it with out shifting the heavy meeting.
A customized loom with silicon cables and good old style harness tape retains the wiring neat and tidy. The pump is linked to a motherboard fan header, they usually even discovered an outdated brass gear lever on eBay to make use of as the ability button, which has a micro swap for a clear momentary motion.
As for the beauty components, the whole factor has been decked up with polished copper pipes, refinished fittings, a customized laser-cut again IO panel, and a few beautiful clear motherboard covers, since who doesn’t like a superb old style analog gauge or two? They’ve even managed to squeeze in some tilt-mounted temperature and strain gauges, making it easy to maintain observe of what’s occurring.
When it comes to efficiency, beneath stress, the CPU reaches a sizzling 80-98°C with some throttling kicking in at 95°C, whereas the GPU retains a comparatively cool 55-75°C at full load, for a complete energy utilization of 520W. However what actually impresses is the low temperatures in video games – in Halo 3 at 4K full settings, the ability demand was solely 170W, and the water was solely 20°C greater than ambient. Spider-Man 2 achieved 350W at 10°C over, whereas Cyberpunk 2077 received 400W at a nice 12°C over. As for the followers, they’re often silent at 10% or simply turned off.
