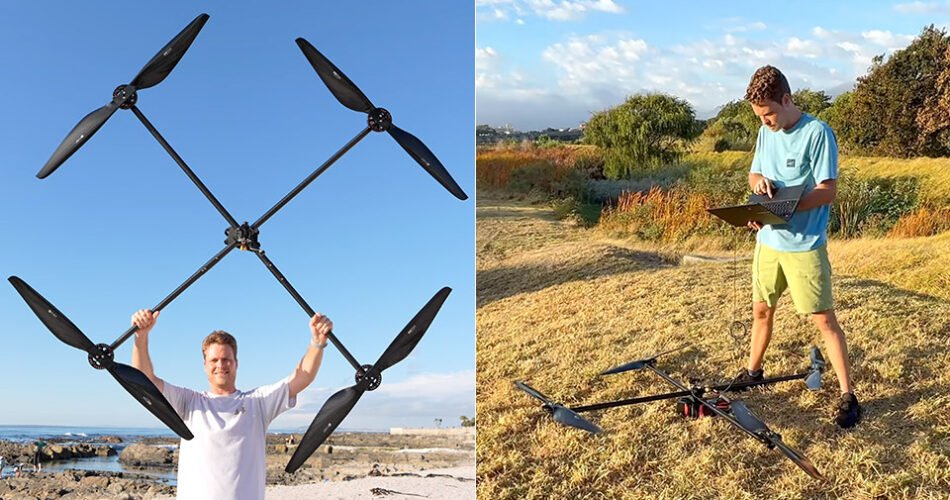

Luke Maximo Bell was capable of preserve a drone airborne for greater than 3 hours on a single battery cost, a exceptional feat of endurance engineering. Bell has a fame for pushing the boundaries, and in 2022 he set a world pace document along with his Peregrine quadcopters, so it’s no shock to see him tackle this new activity.
Bell designed this drone with sheer endurance as his aim from the beginning, wanting it to outlive so long as doable on a single cost, so he made each single resolution with that in thoughts. He used large 40-inch carbon fiber propellers from T-Motor that flip slowly on low-KV motors, requiring much less energy than smaller, faster-spinning propellers. These G40 propellers had been mixed with MN105 V2 Antigravity motors with a 90 KV score, the lightest unit able to dealing with the prop measurement with out including extreme weight.
DJI Neo 2 (Drone Only), Lightweight & Foldable 4K Drone With Camera, Palm Takeoff & Landing, Gesture…
- Light-weight & Moveable Design – Weighing simply 151g [9] and C0 licensed, this compact drone options full-coverage propeller guards for safer…
- Palm Takeoff & Touchdown [1], Gesture Management [2] – Get pleasure from straightforward palm takeoff and touchdown, plus intuitive gesture controls for hands-free operation and…
- Easy & Dependable Monitoring – ActiveTrack [3] retains your topic in focus, whereas Apple Watch enables you to view reside feed, verify flight standing, or use voice…
The drone is powered by Tattu’s semi-solid state NMC LiPo packs, which give roughly 320 watt-hours per kilogram of battery, which is roughly double the vitality density of regular lithium-polymer cells and a major benefit for anybody attempting to construct a long-lasting drone. To make issues much more environment friendly, Bell eliminated 180 grams of packaging from every battery and changed hefty connectors with lighter ones, saving a complete of 360 grams, which is roughly equal to the burden of the entire carbon fiber body. Relying on the air circulation, it hovers round 400 watts, however drops to 250 watts throughout gradual ahead movement because the air circulation will increase raise.
Bell paid particular consideration to the size of the drone’s arms, which isn’t one thing you consider on a regular basis however is sort of necessary. He used computational fluid dynamics simulations in AirShaper to check varied arm size combos earlier than deciding on an 800mm size that appeared to provide one of the best outcomes. Going too brief may end up in wake interference between propellers, whereas going too lengthy provides pointless weight. The wires obtained the identical degree of consideration; he selected 18 AWG gauge wire and utilized it for all 11m or so of wire per engine, weighing the resistance losses towards the vitality value of using further copper.
To maintain issues easy and dependable, he restricted the electronics to a minimal: a Holybro Nano Drive 4-in-1 ESC handles energy distribution, a TBS Lucid H7 flight controller runs INAV firmware, a Matek GPS gadget provides place information, and a DJI O4 Air gadget feeds video feed again to base. Early variations of lighter parts failed, so he changed them with examined components to keep away from related issues. The body is comprised of carbon fiber tubes, with 3D printed arms, mounts, and legs.
Bell carried out quite a few research to construct the drone, together with bench exams that examined the thrust to energy ratio beneath varied masses, and he was happy to find that effectivity decreases as thrust will increase, which is an effective factor as a result of he was then capable of preserve the burden down whereas retaining the thrust up. The primary few flights had been problematic, with a couple of oscillations and damaged components, however he discovered from every failure to enhance the following iteration.
In the long run, the drone flew for greater than 3 hours and half-hour with out incident, even when pounded by winds; at 2 hours and 14 minutes, it had already surpassed SiFly’s hover time with loads of juice remaining. Ahead flight testing revealed a transparent effectivity increase, and the drone landed efficiently with the battery at 2.95 volts to keep away from injury, an unofficial document that places it far forward of the present benchmark.
