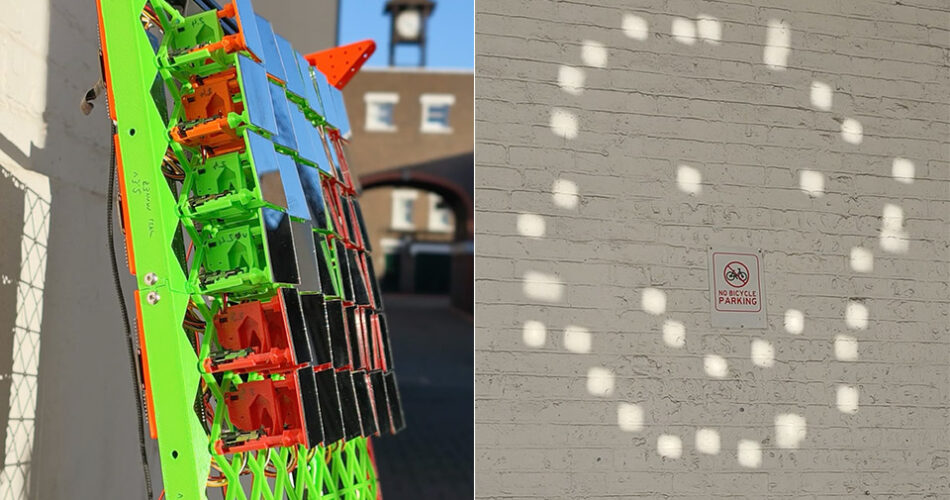

A grid of small mirrors stands there, ready for mild to hit them. Then, in good concord, every mirror tilts and swivels round its personal axis. Mirrored rays transfer throughout a neighboring wall or flooring. Strains, kinds, and full-fledged animations seem to hover in midair when mild spots mix to type them. Time Sink Studio created the Residing Mirror, which transforms atypical daylight or a highlight into programmed doodling.
Every mirror is 50 millimeters sq. and made from atypical glass. They’re put in on particular 3D printed holders, which use intelligent ball-and-socket joints to swivel easily in two instructions. Low-cost stepper motors shove and pull the mirrors to switch angles very precisely, offering 1000’s of tiny steps for precision management.
Sale
Govee RGBIC Smart Table Lamp 2, Touch Bedside Small Table Lamp Matter, Alexa Compatible, LED Desk Lamp…
- RGBICWW Know-how & Upgraded Illumination: Get pleasure from multi-color shows, 500lm brightness (larger than earlier fashions), and adjustable 2700k-6500k…
- Newly Preset Modes: With 64+ various preset scenes, resembling Valentine, and eight music syncing modes, this good desk lamp can enrich your occasion…
- Matter Supported: Along with Alexa and Google House voice management help, make the most of Third-party good residence platforms like HomeKit through the included…
The items are grouped into fours and all share a single management board. These boards use some very fancy DRV8825 drivers to manage the motors, in addition to shift registers to maintain the wiring neat because the array grows. On the heart of all of it is an ESP32 microcontroller that sends directions through a wi-fi community. All of it works on a standard 12-volt energy supply, so you can simply energy it with a battery should you wanted to make use of it exterior.
All of it comes along with some intelligent software program, which is managed by the ESP32 firmware, to make sure that all motor motions run easily and on schedule. There’s additionally an internet interface that enables anybody to design and draw patterns in a browser; you don’t must be a coding genius to put it to use. Customers can simply sketch a form or sequence, and the system will translate it into the suitable mirror actions. Nevertheless, with a purpose to get it precisely proper, it’s essential to first calibrate it, which requires you to level a digicam to the floor you’re projecting onto. The OpenCV software program within the browser examines the place every mirrored beam lands and generates a set of corrections for every mirror, permitting the system to match what you wished with what is definitely taking place. That’s the portion that really closes the hole.
As soon as calibrated, the array involves life, with mild bouncing off the mirrors and zipping about in good time. Due to a trick known as persistence of imaginative and prescient, our eyes see shifting dots as regular footage, leading to hearts, spirals, lettering, or fundamental animations on the goal floor. At present, they’re using 36 mirrors, however ought to they enhance to 64 or extra, it opens up a complete new universe of detailed work. Subsequent up is a few intelligent sensor expertise that permits you to work together with the setup by following hand motions or monitoring your face. In the event you’re exterior on a transparent day, daylight works nice for creating comfortable drawings, nonetheless indoors, a centered highlight or laser enhances the impact. The nicest half is that it might probably operate as a standard mirror when not in use.
Your entire venture’s code is accessible on GitHub for anybody to overview and experiment with. This venture demonstrates that with a minimal equipment, you possibly can design one thing that redirects mild for a sensible objective and creates some very spectacular shows just by utilizing reflections.
