Shane Wighton, the engineer behind “StuffMadeHere,” has simply revealed his new invention, a mini golf putter that routinely adjusts its face angle on the fly to get the ball right into a gap with ease.

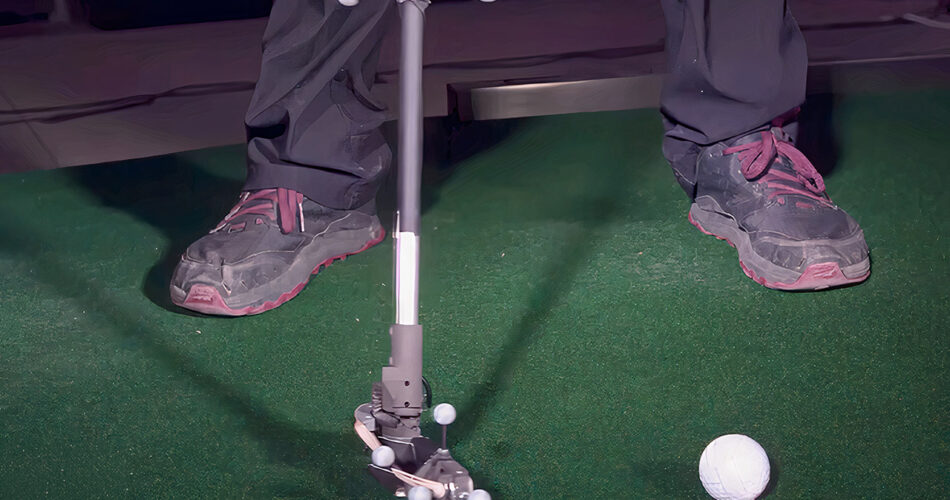

Wighton labored on this undertaking for nearly 300 hours in complete, primarily to degree the enjoying discipline together with his spouse, who excels at mini golf and ceaselessly outperforms him. He needed a putter that’d give him a break from these irritating occasions when he simply can’t fairly put the ball within the gap regardless of his finest efforts. From the floor, it seems to be a standard-looking membership with a machined head and a prolonged shaft, however inside it homes a beast of a high-torque brushless motor coupled by way of a driving shaft to a worm gearbox that permits it to rotate the top round a vertical axis. This configuration maintains the top regular at affect whereas permitting for very fast modifications mid-swing.
Sale
KOFULL Putting Green Mats Set – Indoor/Outdoor Golf Putting Practice or Golf Game with 78″ x 24″ Putting…
- Dwelling Practising Comfortably—This indoor placing inexperienced providing an on the spot lay-flat high facet with non-slip rubber backside. An actual-life inexperienced, indoor…
- Full Golf Units—Moreover our foot form 78 inches placing inexperienced, this product includes1 mini golf putters adjustable (21 inches to 35 inches), 3…
- Moveable & Straightforward Storage—Our children golf set is light-weight, straightforward to hold, roll up and retailer. Units up freely indoor/ out of doors patio yard dwelling…
If you press the button on the deal with, all the system kicks in. Excessive-precision Optitrack cameras observe reflective markers on the shaft, head, and even the ball itself; software program then makes use of that movement knowledge to forecast the swing path and velocity, and instructions the motor to information the top straight towards the opening.
All of this happens inside a 200-millisecond timeframe, which is quicker than you suppose. The putter acknowledges the beginning of your backswing, plots the membership in 3D house to calculate the mandatory correction, after which rotates the top to face the opening earlier than the ball strikes it. Any wobble or hand shaking is corrected in actual time, with the system syncing the monitoring knowledge with the motor orders to compensate for any delays.
In early iterations, the principle concern was response forces from fast motor motion, which brought on the shaft to twist and throw off accuracy. Wighton thought-about utilizing an inertial counterweight to cancel out the torque, however finally switched to heavy inertia rings on the motor to realize stability. He additionally used a brief rubber band to eradicate gear backlash throughout testing and machined the membership head on a five-axis mill to realize the specified tolerances. Different parts have been created by 3D printing and water-jet chopping.
To correctly take a look at the idea, Wighton created a wide range of customized mini golf holes out of modular elements like as wooden frames, metal tubing, and synthetic turf. He devised a wide range of tough eventualities, together with straight pathways, banks, and obstructions, to check the system’s capabilities.
Let’s simply say there have been a whole lot of points alongside the highway, such motor cogging, magnetic interference from close by instruments, and software program faults that brought on the factor to go wild. However after over a thousand take a look at swings, all of it started to return collectively, particularly when he enhanced the management loop by evaluating previous monitoring knowledge to present motor positions to eradicate latency difficulties. The outcomes are fairly spectacular, with the putter directing balls into the opening from all angles and distances. It could actually handle financial institution pictures by calculating the rebound route, work one-handed or blindfolded, observe a transferring gap on a motorized platform, and carry out all of this in full darkness.
