You have doubtless had a printer that did not work and wanted to get replaced or disposed of. Nevertheless, it is not an enormous pile of plastic and metallic heading straight for a dump. If you’re a resourceful maker, an engineer, and even only a hobbyist, a damaged printer is definitely a treasure chest.
These elements tucked away inside that forgotten shell had been constructed to maneuver issues with exact, sub-millimeter accuracy. They needed to feed hundreds of pages of paper reliably and handle high-voltage energy hundreds whereas remaining completely secure. You’re basically taking a look at industrial-grade components simply hiding inside client packaging, and you may get a few of these out with a screwdriver.

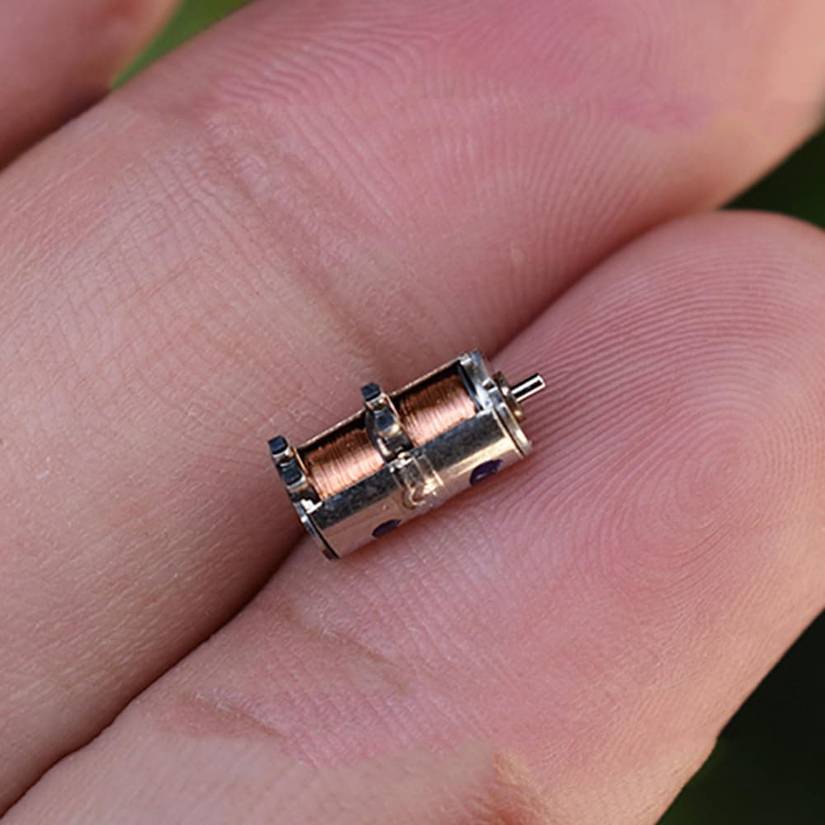

Stepper motors
These elements are most likely essentially the most helpful components you may salvage from outdated gear. They’re important if you’re engaged on initiatives that demand extraordinarily exact management over place, like while you’re constructing 3D printers, CNC machines, or perhaps even robotic arms.
A typical DC motor simply spins constantly while you give it energy. Stepper motors are completely different, shifting in separate steps. This particular means permits you to program them to rotate to an ideal, actual angle after which have them maintain that place with some severe holding torque. Should you try older dot-matrix and laser printers, they’re really implausible sources for high-quality NEMA-standard steppers.
Going this route can completely prevent a large amount of money in comparison with shopping for new ones on your automation initiatives. Whereas trendy, low-cost inkjet printers have converted to DC motors coupled with optical encoder strips to maintain manufacturing prices down, the older workplace gear continues to be a goldmine for these actually robust actuators. That is one motive you wish to use laser instead of inkjet.

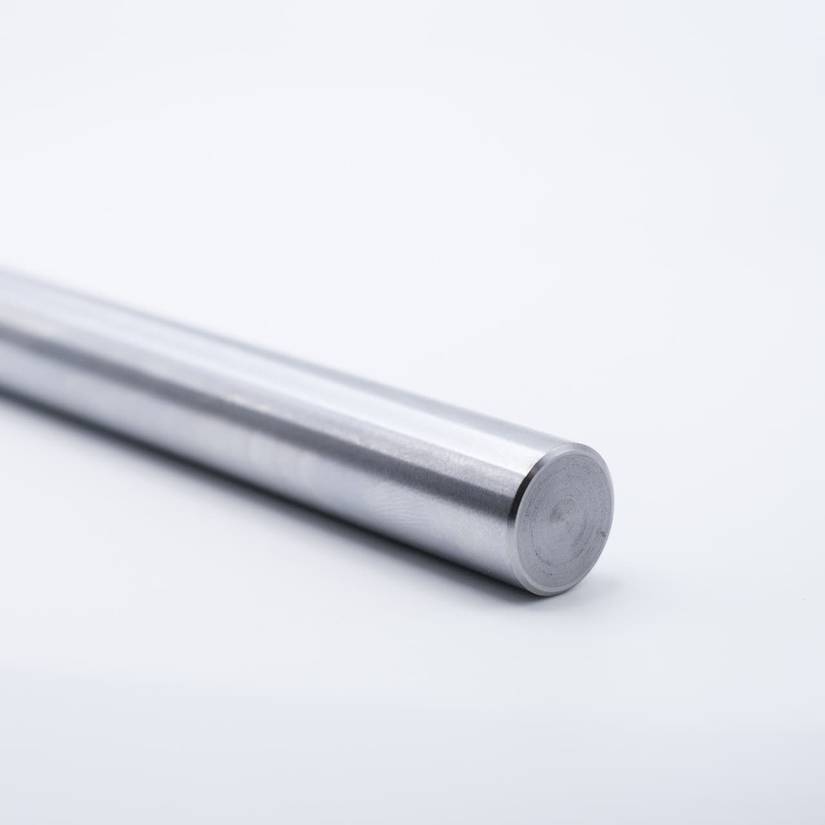

Precision linear shafts (easy rods)
The metal rods that the print head makes use of to slip forwards and backwards are made to a lot increased requirements than the stuff you sometimes discover while you go to the ironmongery store. These precision linear shafts are designed particularly to present you very low friction and ideal straightness. Should you evaluate these to the tender, generic metallic or threaded rods typically bought at residence enchancment shops, the distinction is evening and day.
These low-cost options can have floor imperfections or slight bends. Printer shafts, alternatively, are engineered for easy, quick, and repetitive motion with none degradation. A variety of the time, these components are high-quality stainless or hard-chromed metal. This makes positive they’re sturdy and proof against rust. That’s what actually units them other than the cheaper junk you discover in scrap bins. As a result of all that, they’re the right rails if you’re constructing your individual linear movement programs.

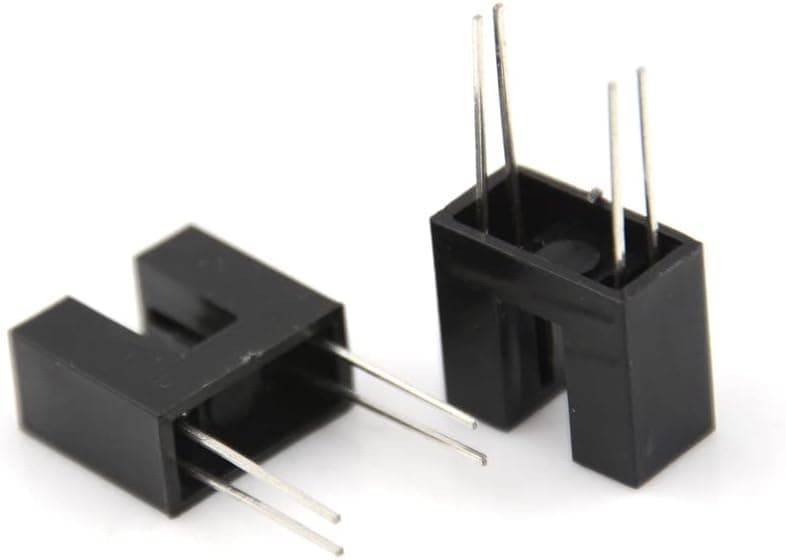

Optical slotted switches (photo-interrupters)
These small, U-shaped plastic elements are extremely useful since they will act because the eyes for all your electronics initiatives. They’re what we name non-contact restrict switches or counters. The straightforward manner they work is that they shoot a beam of infrared gentle from one aspect of the slot over to a receiver on the opposite. When one thing will get within the path and blocks it, {the electrical} sign adjustments.
Printer producers use them to detect when paper passes by or when the print head has reached the top of its monitor. Then again, you may simply repurpose these on your Arduino initiatives to rely what number of instances a wheel rotates, work out if a door is open, or act as dependable residence sensors for stepper motors. Since these elements function with no need any bodily contact, they’re resistant to mechanical put on, contact bounce, and the environmental corrosion that normally destroys normal switches over time.
The ability provide unit

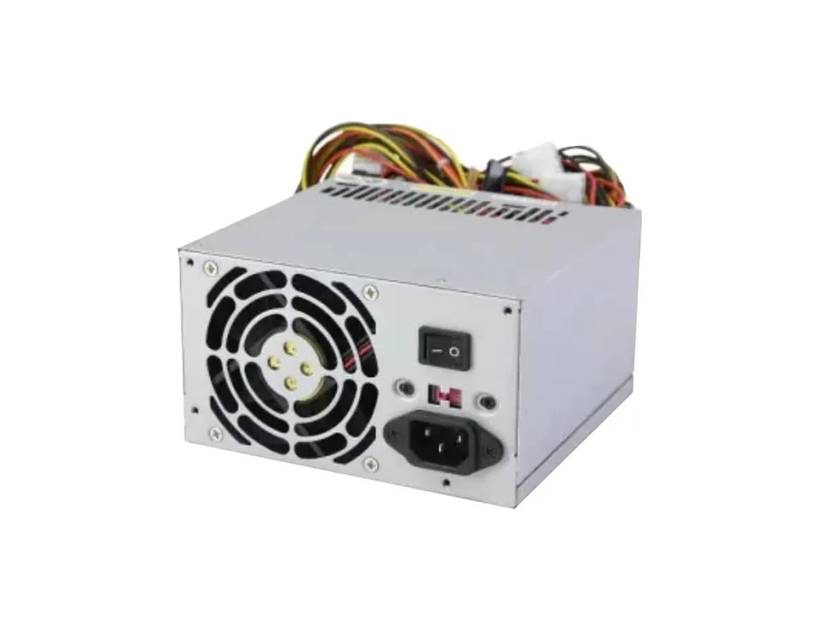

Printers, significantly the laser ones, completely want clear and tremendous dependable DC energy. This sometimes means they run at increased voltages, like 24V or 32V. You simply aren’t going to get that type of output in your normal USB wall charger. Should you tear aside a regular workplace inkjet, you would possibly discover a proprietary provide that may swap between 12V and 32V. Laser printers normally pack strong 24V switch-mode energy provides (SMPS) constructed particularly to deal with issues like fuser heaters and different heavy-duty electromechanical programs.
Should you salvage items from greater machines, they will generally even push out large present, like 10 amps. That makes them extremely highly effective assets for constructing initiatives resembling CNC routers or customized 3D printers.
Messing round with energy provide items may be extraordinarily harmful and end in demise. It is best to depart them be if you do not know precisely what you are doing.

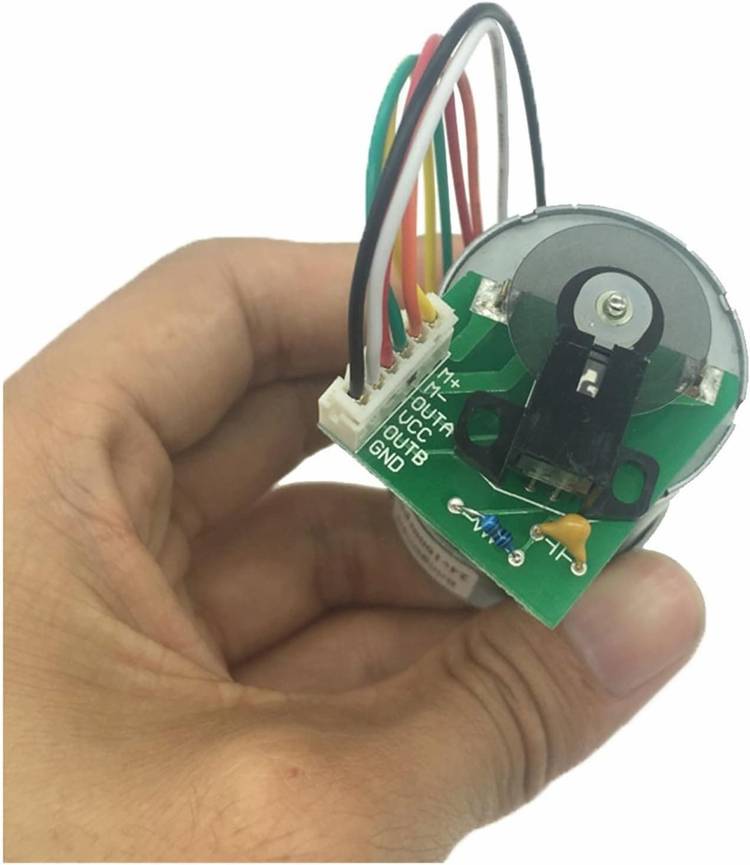

DC Motors with Optical Encoders
Whereas stepper motors are actually glorious should you want excessive precision, the DC motors that you simply discover inside issues like inkjet printers are implausible for units that require excessive pace however nonetheless depend on positional suggestions. This is among the causes individuals like them over laser. You may nearly all the time see these motors paired up with a transparent plastic strip or disk that has tiny traces on it, and a sensor designed to learn them. Whenever you pull the motor together with its encoder system, you find yourself with a robust drive unit that understands how rapidly it’s spinning and precisely how far it has traveled.
This makes the entire thing good for constructing wheeled robots that have to drive in straight traces or precisely measure distance. Producers typically lean towards these DC motors coupled with optical encoders as an alternative of conventional steppers. They select this setup as a result of they will obtain related precision however at a lot quicker speeds, which is totally crucial for speedy printing.

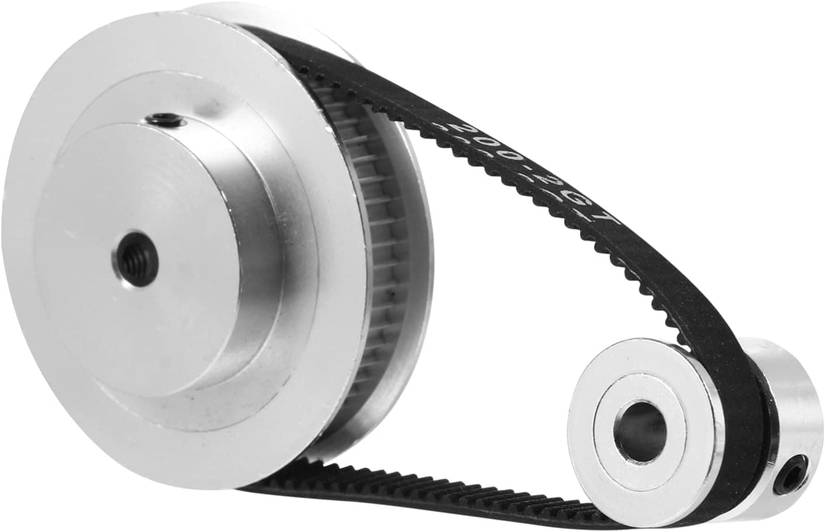

Timing Belts and Pulleys
It is best to actually maintain onto the drive belts and the toothed pulleys as a result of these specialised mechanical transmission components are surprisingly costly should you attempt to purchase them by themselves. These aren’t simply easy rubber bands; they’re toothed timing elements which can be particularly designed to vary rotation into linear movement with none slippage. That is completely crucial for something that wants precision, which is what separates it from the graceful friction-based options that have a tendency to slide below load.
After we discuss a printer, these belts are answerable for the precise positioning of the print head carriage, typically working proper alongside DC motors and optical encoders to present you sub-millimeter accuracy. Whenever you salvage these, you are not simply getting a bolstered rubber strap; you might be buying a synchronized system the place the tooth of the belt match completely with these on the drive pulley. This makes positive that each rotation of the motor interprets to a selected, repeatable distance of linear journey.
You might be hesitant to mess with an enormous chunky digital system, however you don’t have anything to lose since you will doubtless be buying a new printer. Any printer already heading to the dump will not price extra should you break it aside first. You would find yourself with what seems like free high quality engineering {hardware}.
So, earlier than you allow that outdated unit out by the curb, simply bear in mind that there’s a secret workshop hiding proper inside its casing. It is best to seize your instruments, begin taking issues aside, and remodel right this moment’s e-waste into the bottom on your subsequent nice undertaking.
