Flight simulators want precision, however extraordinary joysticks isolate pilots from the motion. Zeroshot, a creator who goes deep into digital skies, was painfully conscious of the hole. Industrial selections for drive suggestions exist, nonetheless they’re costly and tough to get. As an alternative of compromising, he designed his personal from scratch, integrating 3D printed elements, stepper motors, and ingenious circuitry to create a controller that resists each motion.

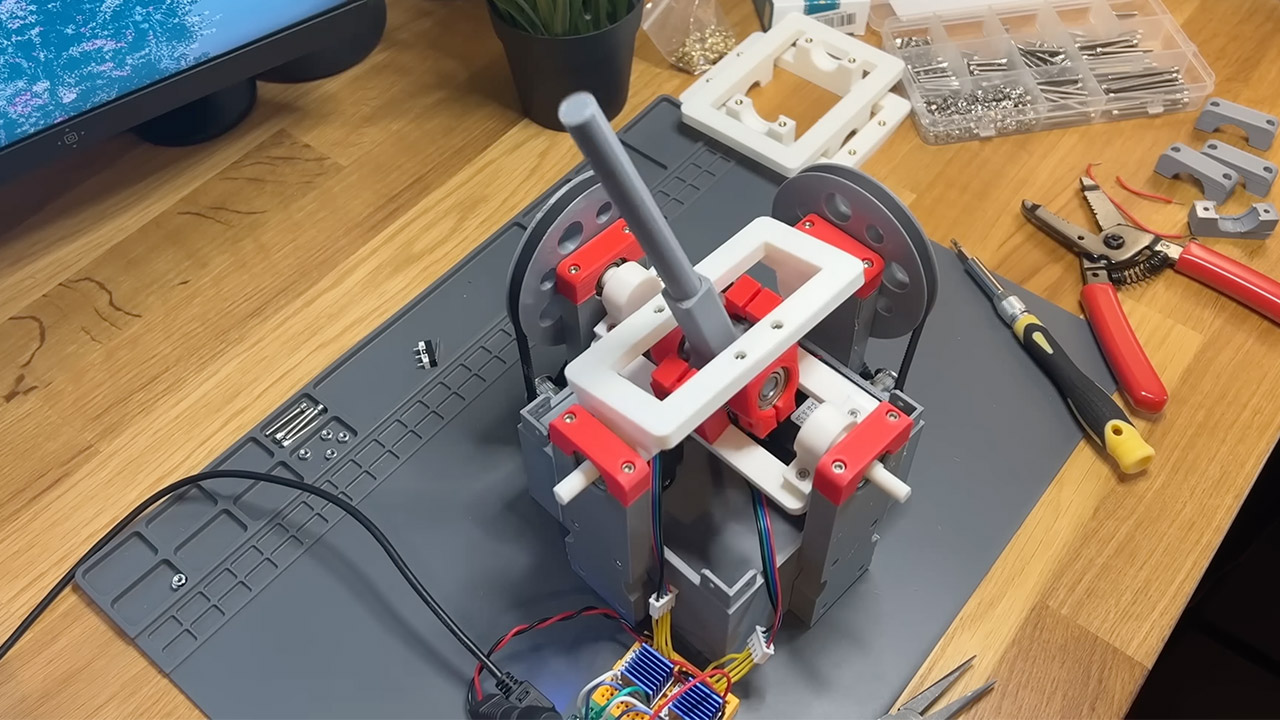

The development course of begins with the gimbal, the central element that enables for easy movement in two axes. Zeroshot created a base by which each the inside and outer frames rotate straight from fastened areas. Eight 608zz bearings guarantee easy rotation at every joint, whereas 3D printed items make up the light-weight construction. Threaded inserts and M3 bolts preserve all the pieces collectively. This mounts two Nema 17 stepper motors on to the bottom, lowering weight and making modifications easy.
Logitech G X56 H.O.T.A.S Throttle and Joystick Flight Simulator Game Controller, 4 Spring Options, +189…
- Navy-grade Area and Flight Sim Precision. Customizable choices together with all of the management floor choices required to realize the precise degree of…
- New Mini Analog Stick Management Surfaces: Management pitch, roll, yaw, backwards, forwards, up, down, left and proper in addition to gimballed weapons which can be…
- RGB Backlighting: Many PC peripherals now function RGB backlighting and the X-56 isn’t any exception. Use the software program to set the colour of the lighting to…
Belts join the motors and gimbal to impart drive. A GT2 timing belt winds round pulleys: a small 20-tooth pulley on every motor shaft and an enormous 120-tooth pulley on the joystick axis. Six motor spins equal one full joystick motion, which multiplies the torque and creates vital resistance. The motors are managed by TMC2208 stepper drivers, that are coupled to the central mind, an Arduino Micro.

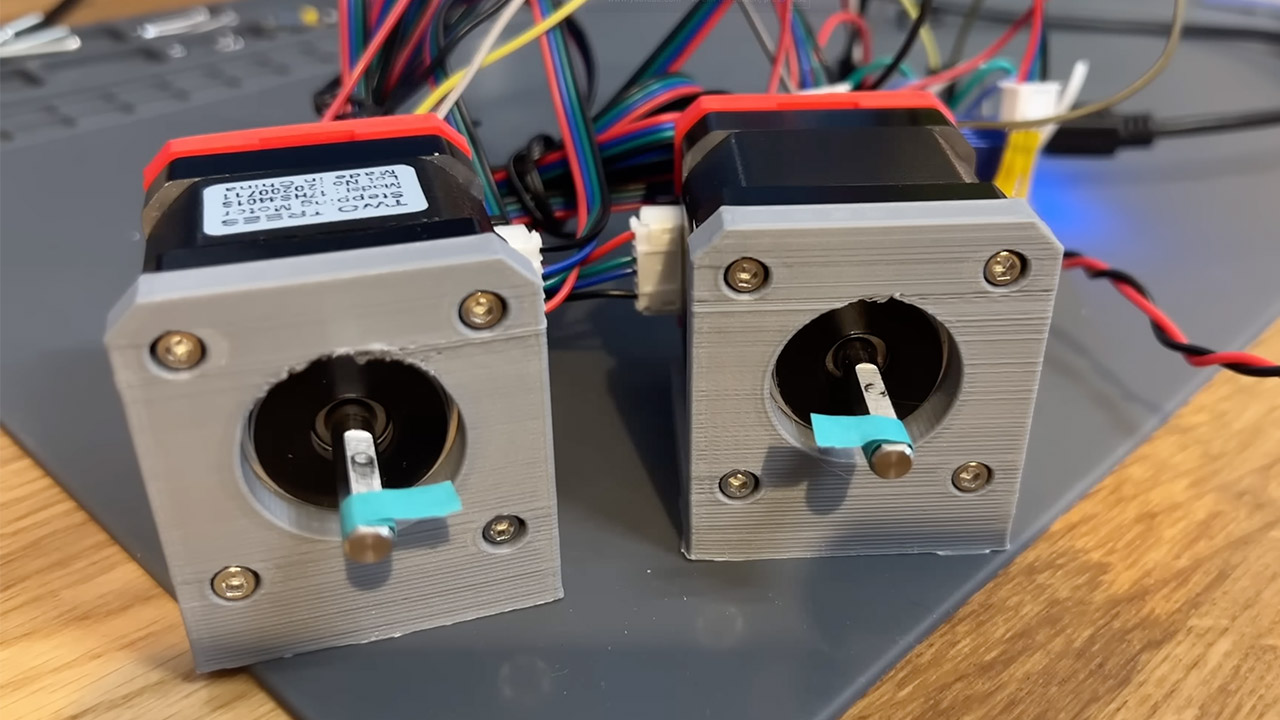

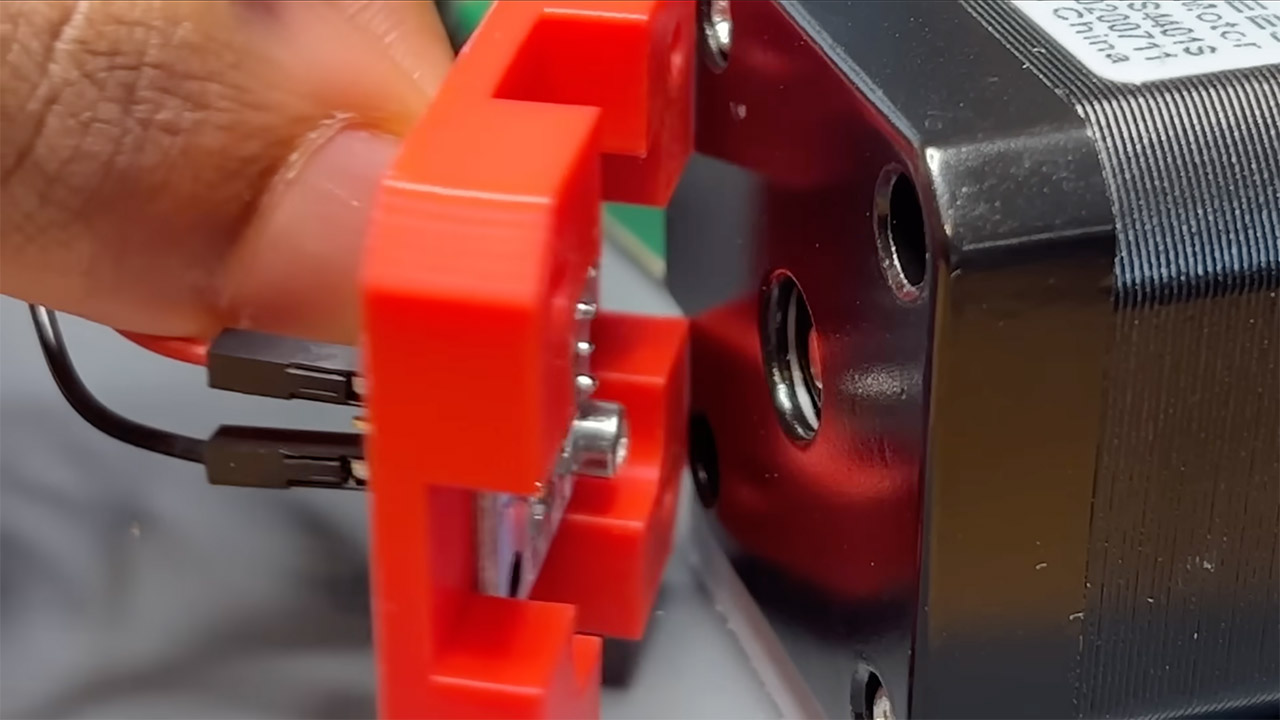

Accuracy is required for place monitoring, notably when utilizing consumer enter. Stepper motors lose depend when moved by hand, skipping steps. Zeroshot used AS5600 magnetic encoders with small diametric magnets mounted to the motor shafts. Magnets positioned inside 3mm of the sensors present exact angle readings no matter exterior pressures. The Arduino reads this knowledge and sends it to the pc as an everyday USB HID machine, identical to any store-bought joystick.

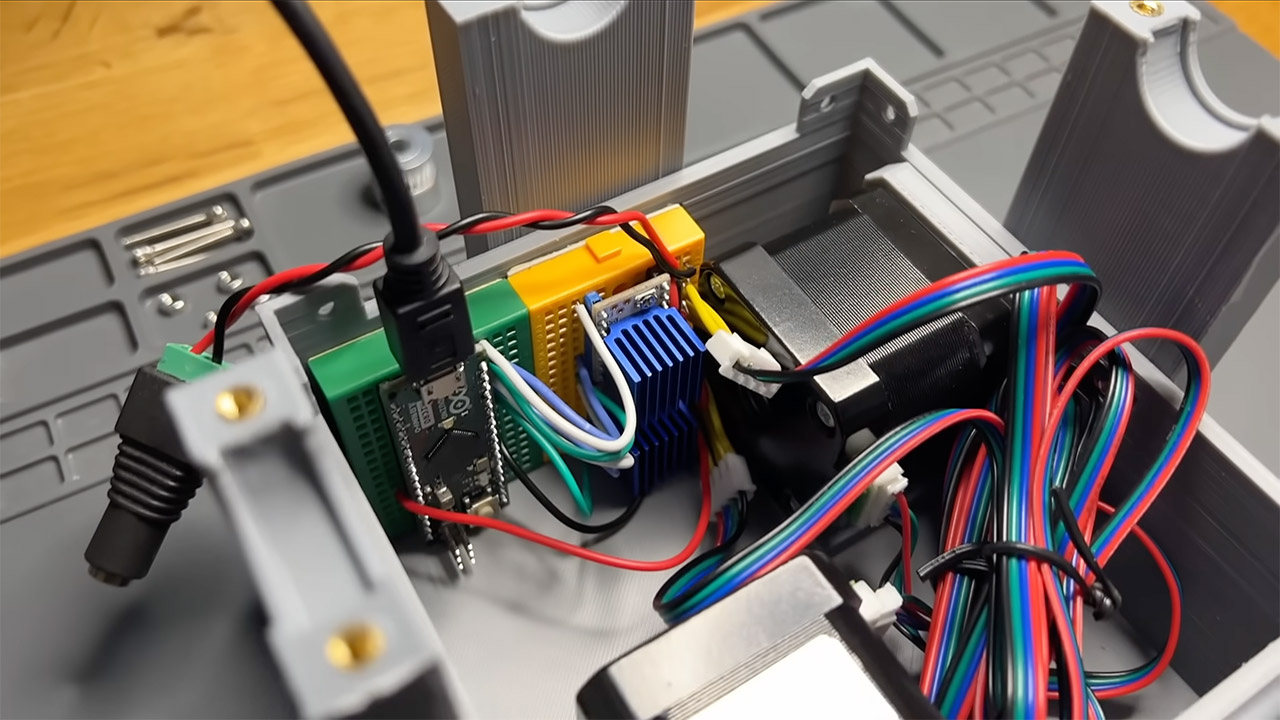

Meeting was not with out its challenges, as early exams confirmed the gimbal binding when transferring each axes directly, attributable to over constrained pivots. Shifting the inside factors nearer to the middle fastened the problem and expanded the vary. Belt pushed actuators prompted body collisions, fastened by redesigning the bearing mounts. Every iteration acquired smoother and turned a stiff prototype right into a responsive controller.The whole lot matches inside the bottom. A 12v 10a energy provide powers the system by means of a DC adapter plug. Strong core 22 AWG wire connects parts on a breadboard for simple changes. The Arduino Micro drives the motors and emulates USB enter, sending axis positions and button presses. A customized 3D printed grip has a micro swap for a set off, provides firepower to the flight controls.

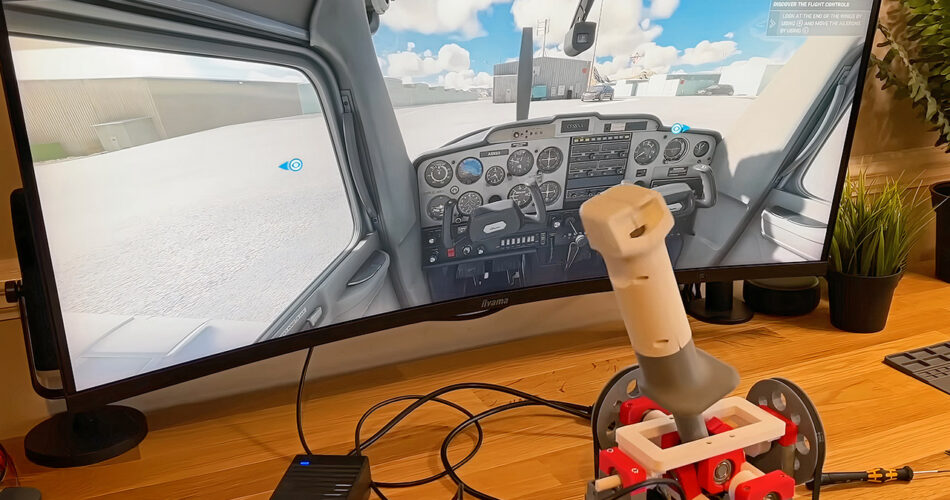

The Arduino code reads encoder knowledge, makes use of it to nudge the joystick again into place with some springy suggestions, and sends the required HID reviews to convey all the pieces collectively. The stick seems in MS flight simulator as if it have been designed for the aim. Nevertheless, getting the motors to withstand your actions is a unique subject; turning them requires loads of energy.Zeroshot progressed to the purpose the place they may carry out a couple of tough landings, struggling towards the resistance each step of the way in which, earlier than programming in sure sequences for auto takeoffs, merely watching the stick shuttle by itself.
The motors present wonderful, quick actions with simply sufficient power to make all the pieces really feel stable – and an enormous benefit is that diagonal inputs transfer with out changing into caught, because the previous one did. The essential suggestions is sort of easy – only a regular mild tug again in the direction of the middle – nevertheless it presents up a plethora of prospects for extra advanced results similar to turbulence or stall warnings. To be trustworthy, breaking a couple of printed items all through the testing course of proved to be a blessing in disguise in the long run.
