University of Tokyo Flapping-Wing Drone
A group from the College of Tokyo’s DRAGON Lab has created a flapping-wing drone that may land on a human hand, similar to a falcon. Led by Kazuki Numazato, they designed a system that mixes human gestures with flight planning.



Flapping-wing drones transfer like birds, in contrast to the whirring propellers of conventional drones which may sound like a swarm of indignant bees. How so? The previous makes use of smooth, versatile wings that oscillate gently. The result’s a quieter, safer machine that feels much less intimidating when it will get shut. Their drone, the Flapper Nimble+ mannequin, is impressed by falconry the place birds of prey land on a falconer’s outstretched arm. They developed a system that may work in compact areas the place fastened touchdown spots are troublesome to seek out by using the human hand as a dynamic touchdown platform.


DJI Neo, Mini Drone with 4K UHD Camera for Adults, 135g Self Flying Drone that Follows You, Palm Takeoff,…
  • As a consequence of platform compatibility concern, the DJI Fly app has been faraway from Google Play. DJI Neo should be activated within the DJI Fly App, to make sure a…
  • Light-weight and Regulation Pleasant – At simply 135g, this drone with digicam for adults 4K could also be even lighter than your cellphone and doesn’t require FAA…
  • Palm Takeoff & Touchdown, Go Controller-Free [1] – Neo takes off out of your hand with only a push of a button. The protected and straightforward operation of this drone…

University of Tokyo Flapping-Wing Drone
Earlier analysis exhibits {that a} drone nearer than 0.3 meters can really feel intrusive. Avoiding this meant programming the drone to take care of a minimal distance of 0.3 meters from the consumer’s chest, slowing down because it will get shut. The drone approaches from the entrance or aspect, by no means from behind, to maintain the consumer comfy. Its altitude is between elbow and eye stage so individuals can see each the drone and their hand with out straining their neck.

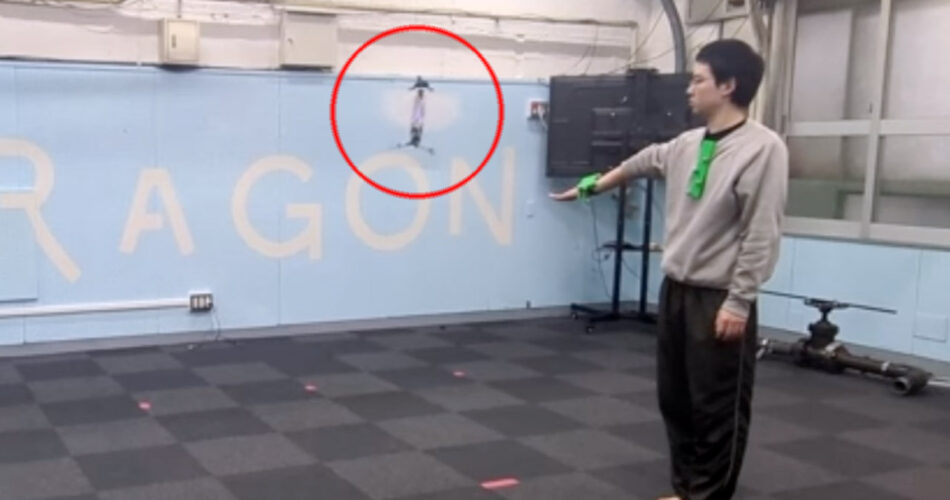

Impressed by falconers who stretch out their arm to sign a chicken to land, they designed the drone to answer two states: “keep” and “method”. Once you bend your arm and preserve your hand nearer than 0.3 meters to your chest, the drone hovers in place. Once you lengthen your arm, the drone begins its descent in direction of your palm. That is primarily based on a movement seize system with 8 Optitrack Prime 13 cameras monitoring markers in your chest, wrist and the drone itself. A pc processes these positions in actual time and sends instructions to the drone by way of a radio dongle.

Flight planning is the place the drone’s mind actually shines. The group broke the method into 4 zones primarily based on distance from the consumer. Additional than 1.25 meters the drone flies straight to the palm at a gradual tempo. Between 1.25 and 0.6 meters – roughly the size of an arm – it slows down, utilizing a formulation primarily based on how people understand velocity. The drone’s velocity adjusts to maintain the sense of method fixed, no sudden actions to startle. Nearer in, it traces a round path across the consumer’s chest to remain at a protected distance whereas inching in direction of the hand. If the hand will get too near the chest, the drone pauses.

Experiments with the Flapper Nimble+ drone confirmed promising outcomes. The drone adopted its deliberate path with a root imply sq. error of 0.1695 meters, however was about 1 second behind its goal place on account of management system delays. Its velocity oscillated barely because it adjusted to new instructions each 0.1 seconds, which may very well be smoothed out with quicker updates or extra refined planning. When the consumer moved the drone tailored, monitoring the hand’s place and switching between hovering and approaching as wanted. The touchdown was mild, the drone settled onto the palm with out overshooting or jarring actions, due to its smooth wings and exact management.

This opens up new potentialities. In crowded city areas a drone that lands on a hand might ship small packages to an individual, no touchdown pad required. For individuals with restricted mobility – the aged or disabled – a drone that involves them might make interactions simpler and extra accessible.
