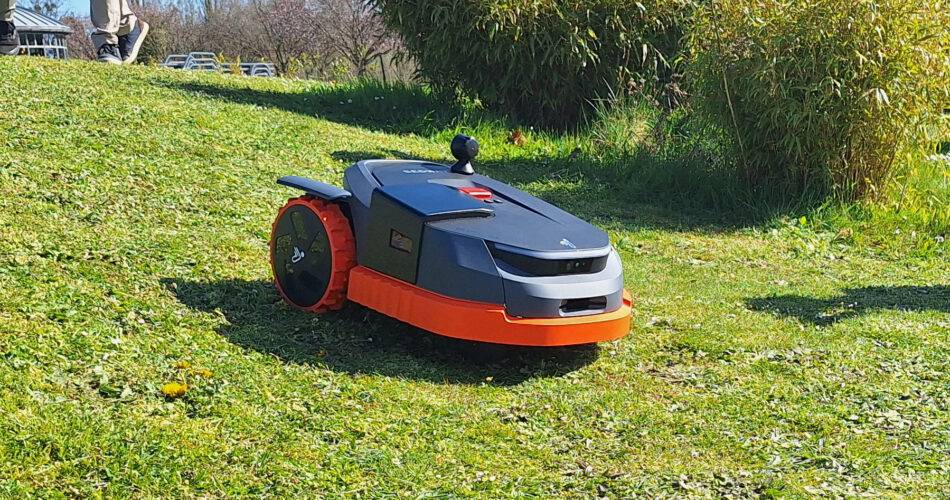

RTK stands for ‘actual time kinematic [positioning]’, and it is a system that works to make GPS knowledge extra correct. So satellite tv for pc knowledge alone may assist find your robotic garden mower right to inside a number of meters, however mix it with RTK positioning, and it could slender that down to a couple centimeters.
That is the know-how that has enabled trendy lawnbots to navigate without a boundary wire. It additionally means the lawnbot can mow in an ordered, logical style, slightly than simply traversing the garden randomly.
Nevertheless, the effectiveness of RTK positioning is reliant on particular components – and if sure issues are off, it may not work very effectively in any respect. Learn on for extra on how RTK positioning works in robotic garden mowers.
Why is satellite tv for pc knowledge not correct sufficient?
We have been utilizing the time period GPS, however that’s actually simply one among 4 techniques that may be offering the satellite tv for pc knowledge that helps your lawnbot discover its means round – so a extra right acronym can be GNSS (international navigation satellite tv for pc system).
The satellites use two essential sign sorts. The oldest sort of satellite tv for pc sign is the L1 sign, and this will’t move by way of any strong object. Newer L2 alerts can penetrate by way of some objects – together with issues like thinner timber, plastic and lightweight tree protection – however each time it does so, the sign will get weaker.
The time it takes for the sign to get from the satellite tv for pc right down to earth is what creates the inaccuracies in positioning knowledge. Even passing by way of our ambiance causes delays; the sign passes by way of some areas extra shortly than others.
How does RTK positioning assist?
RTK basically helps right inaccuracies in satellite tv for pc positioning knowledge, to make it extra exact. It does this in actual time.
The system depends on a set, antenna-equipped base station with recognized coordinates (that is separate from the robotic garden mower’s charging station, which is the place the bot docks and recharges its battery). Each the RTK base station and lawnbot connect with satellites within the sky.
To do that they want a direct line of sight to every satellite tv for pc – issues like partitions, roofs and even tree protection can block the sign. What’s extra, each the bottom station and lawnbot each want to connect with the identical satellites with a view to perform.
The RTK station must be positioned so it has the widest unobstructed view of the sky as doable, in as many instructions as doable. It ought to be excessive up, and away from overhanging buildings and bushes.
As a result of the lawnbot wants to have the ability to connect with satellites when it is docked in addition to when it is working, the cost station additionally must be able with a direct line of sight to the sky (you possibly can usually get away with there being a wall behind, offered the opposite three instructions are open and have good line of sight to the sky.)
The RTK base station additionally connects to the lawnbot, however this connection does not require a direct line of sight – it is normally a radio sign, which might move by way of strong objects.
Are there any down-sides of the RTK system?
The large advantage of utilizing RTK and GPSS knowledge for navigation is that it means you need not undergo the effort of including a boundary wire to your backyard.
Nevertheless, it isn’t a failsafe system. The entire thing hinges on there being loads of unfold out satellites that each the robotic mower and the RTK station can connect with. Overhead obstructions like bushes and buildings will impression on how efficient it’s, and having an excellent place to place your RTK station is important.
As a result of they’re so delicate to environmental components, lawnbots that depend on RTK are extra vulnerable to getting misplaced, or straying out of bounds, than people who use perimeter wires.
You may additionally discover that the situation knowledge nonetheless is not fairly exact sufficient. An RTK-powered robotic mower will will navigate your garden in neat traces, however as a result of there’s nonetheless a number of centimeters’ margin of error, you may find yourself with unmown strips of grass between rows. You may additionally want to go away a bigger buffer at probably hazardous perimeters – for instance, the sting of a pond. Lawnbots that use boundary wires will cowl the world in a way more haphazard means, however they’re going to by no means go over a boundary, and are maybe much less more likely to find yourself lacking a spot.
These potential weak factors imply virtually all trendy lawnbots will embody one other sort of navigation system as backup for when sign is poor. That may be one thing like radar or LiDAR (the strategy utilized in most of at this time’s best robot vacuums), or a digital camera. There are after all limitations for every system, however applied sciences are getting ever extra superior, and consequently, so are the lawnbots they energy.
