Enthusiast restores two Sound Blaster 16 cards documenting the challenges of vintage hardware repair

Recap: TechTuber Necroware not too long ago accomplished repairs on two Inventive Sound Blaster playing cards from the Nineties. These repairs come at a time when devoted sound playing cards are more and more uncommon. Trendy motherboards supply high-quality onboard audio, and plenty of customers – particularly these on laptops – go for USB-connected DACs for enhanced sound. Nonetheless, for fans like Necroware, restoring classic {hardware} is as a lot concerning the journey because the end result.

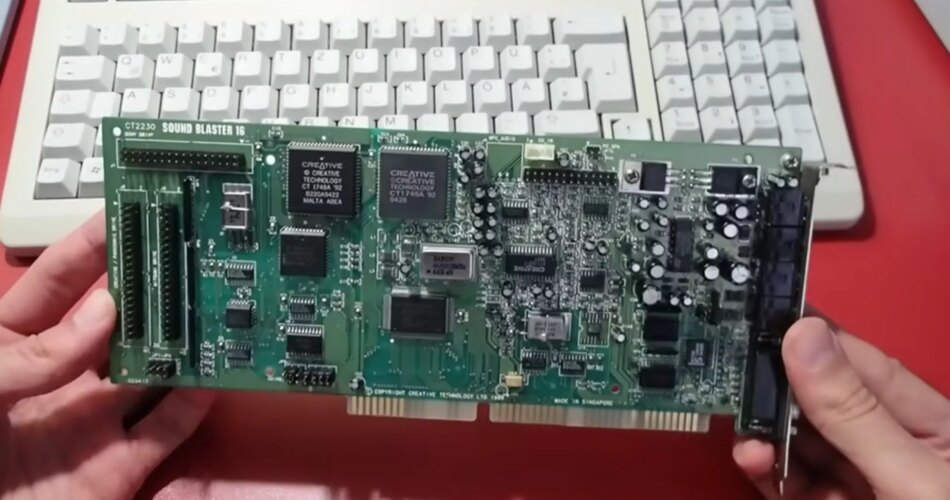

The primary challenge focused on a 1994 Inventive Sound Blaster 16 (CT2230), a card that had seen higher days. “It regarded a bit scruffy,” Necroware admitted, noting the lacking bracket and visual abrasions on the PCB – remnants of earlier restore makes an attempt.

A post-it observe served as a reminder of a damaged hint, the cardboard’s central situation. With a digital microscope, Necroware rapidly situated the fault and used his soldering station to bridge the hole with a wire. The restore was simple, and DOS Unisound drivers quickly acknowledged the cardboard.

Testing the cardboard in Descent II, Necroware reported that the Yamaha OPL3 FM synthesizer “performed the music observe properly,” and the stereo digital audio was clear. He turned to fashionable expertise to deal with the lacking bracket, fashioning a sturdy 3D-printed substitute. “The plastic bracket was thick, however this was essential for power, and it nonetheless match OK,” he defined.

The second card, a Inventive Sound Blaster 16 IDE (CT2290), introduced a much more important problem. Having languished in Necroware’s to-do pile and served as a donor for different repairs, the CT2290 was in tough form. When first put in, the system did not detect it, exhibiting “no indicators of life in any respect.” Necroware recalled earlier points with the information bus transceiver and buffer, that are widespread bother spots for this mannequin. Nonetheless, preliminary makes an attempt to repair a line of defective resistors yielded no outcomes.

Shifting focus, he probed the bigger built-in circuits and determined to switch a misbehaving bus transceiver. This transfer paid off: the Unisound driver lastly acknowledged the cardboard.

Nonetheless, the victory was short-lived. Whereas Wolfenstein 3D’s menu performed sound, in-game audio samples had been lacking, and Descent II produced comparable outcomes – music however no sound results.

Stumped, Necroware consulted a Sound Blaster 16 {hardware} programming information, which pointed him towards a lacking CT1748A chip. The chip, beforehand eliminated for one more challenge, was a uncommon discover. To ease future repairs, Necroware put in a socket as a replacement.

With the chip reinstalled, the cardboard lastly functioned as supposed. “Necroware now has two working Sound Blaster 16 playing cards for tasks,” the video concluded.

The story did not finish there. A viewer identified that the frilly CT1748A chip substitute may need been pointless. “Setting a jumper on the PCB (or bridging two pads) may route digital audio to keep away from this digital sign processor chip,” the commenter famous, suggesting a extra simple resolution was obtainable all alongside.
